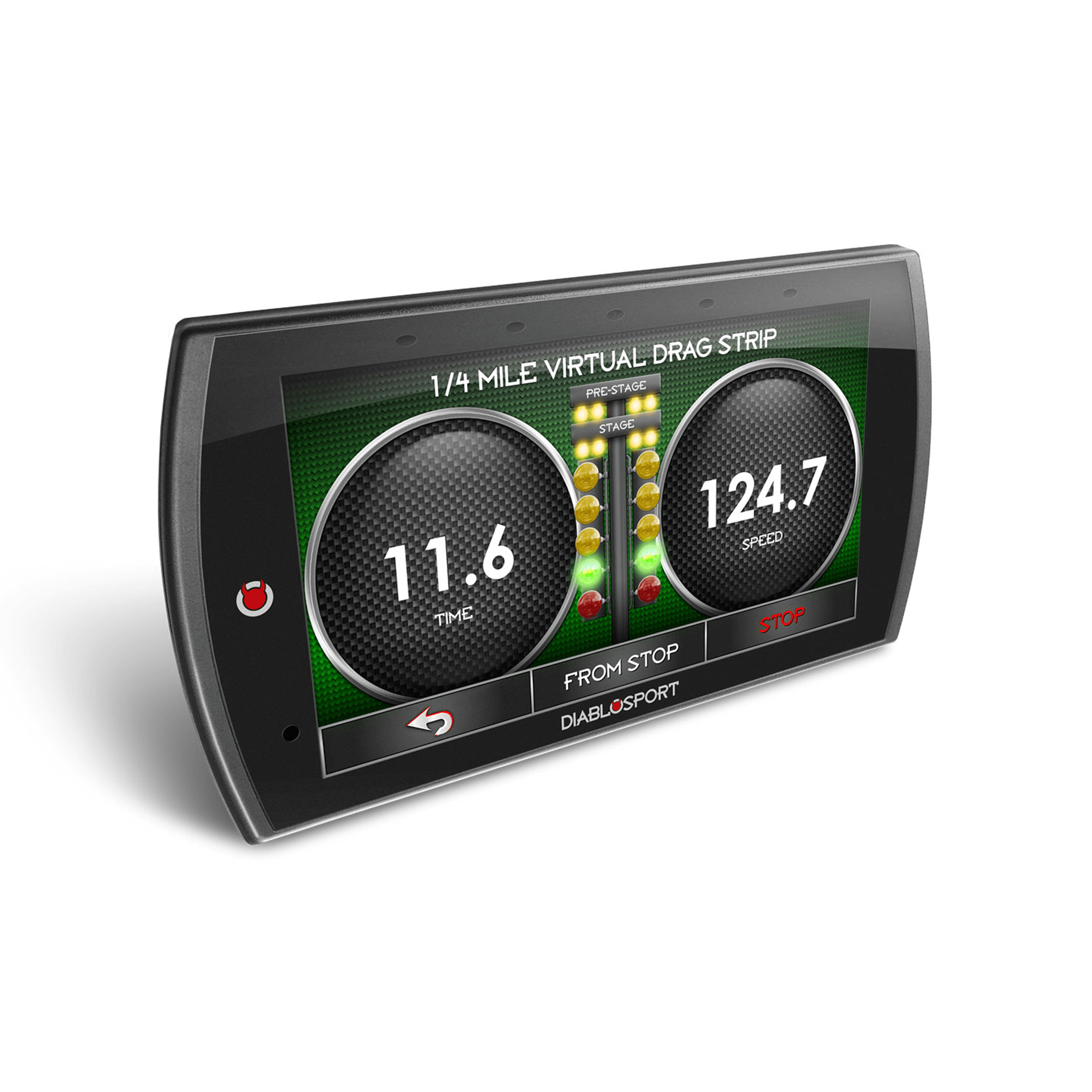

The all-new Trinity (T2) Platinum PCM Swap is the most advanced performance programmer and monitoring setup of its kind for 2015+ Dodge/Ram/Chrysler/Jeep applications

Featuring a high resolution, 5 capacitive touch screen, full swipe functionality, industry-leading gauge designs, jaw dropping power potential and powerful, yet simple, user interface.

The T2 is unlike anything else on the market Taking advantage of Diablo Sport's cutting-edge PCM Swap program allows you to focus on the sleek, new look with T2, while enjoying power and improved drivability

The PCM Swap process is seamless, affordable, and best-in-class The Trinity T2 Platinum PCM Swap is designed for those who want the best of both worlds, pre-loaded, high-performance tunes in addition to custom tuning capability

The T2 Platinum is already equipped with some of the best tuning right out of the box but we know our customers like to bolt-on upgrades and extract every bit of horsepower out of their vehicles That is where CMR custom tuning comes in

Our nationwide network of CMR custom tuning dealers can build tunes for your specific ride on a dyno or by using the built-in data logging features of the Trinity

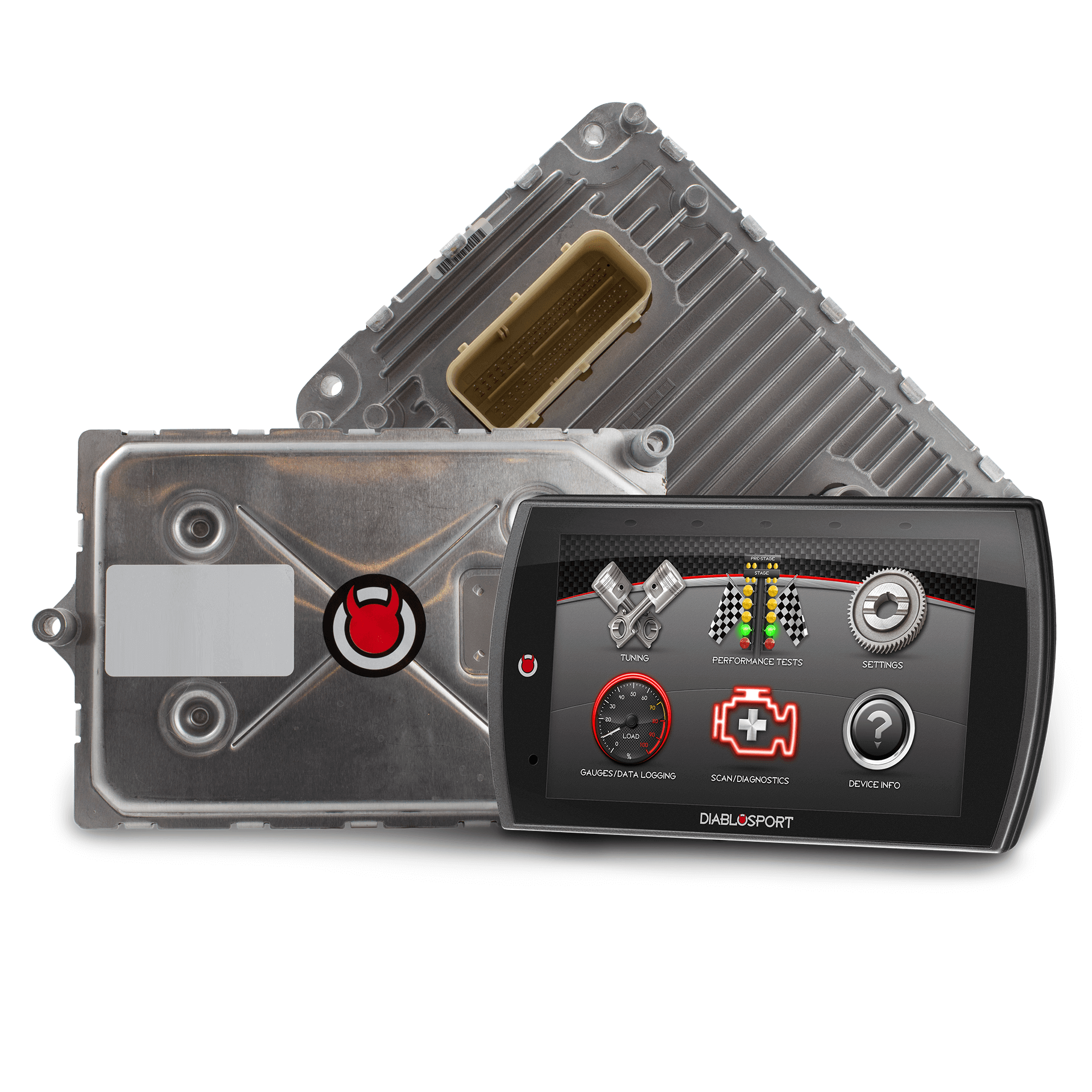

Now you can have great tunes for now, and custom tunes for when you take your ride to the next level with the Trinity T2 Platinum This PCM Swap kit includes a Diablo Sport Trinity and a one-time unlocked PCM cross shipment.

Features:

• 2015 Ram 2500/3500 6.4 6 Speed

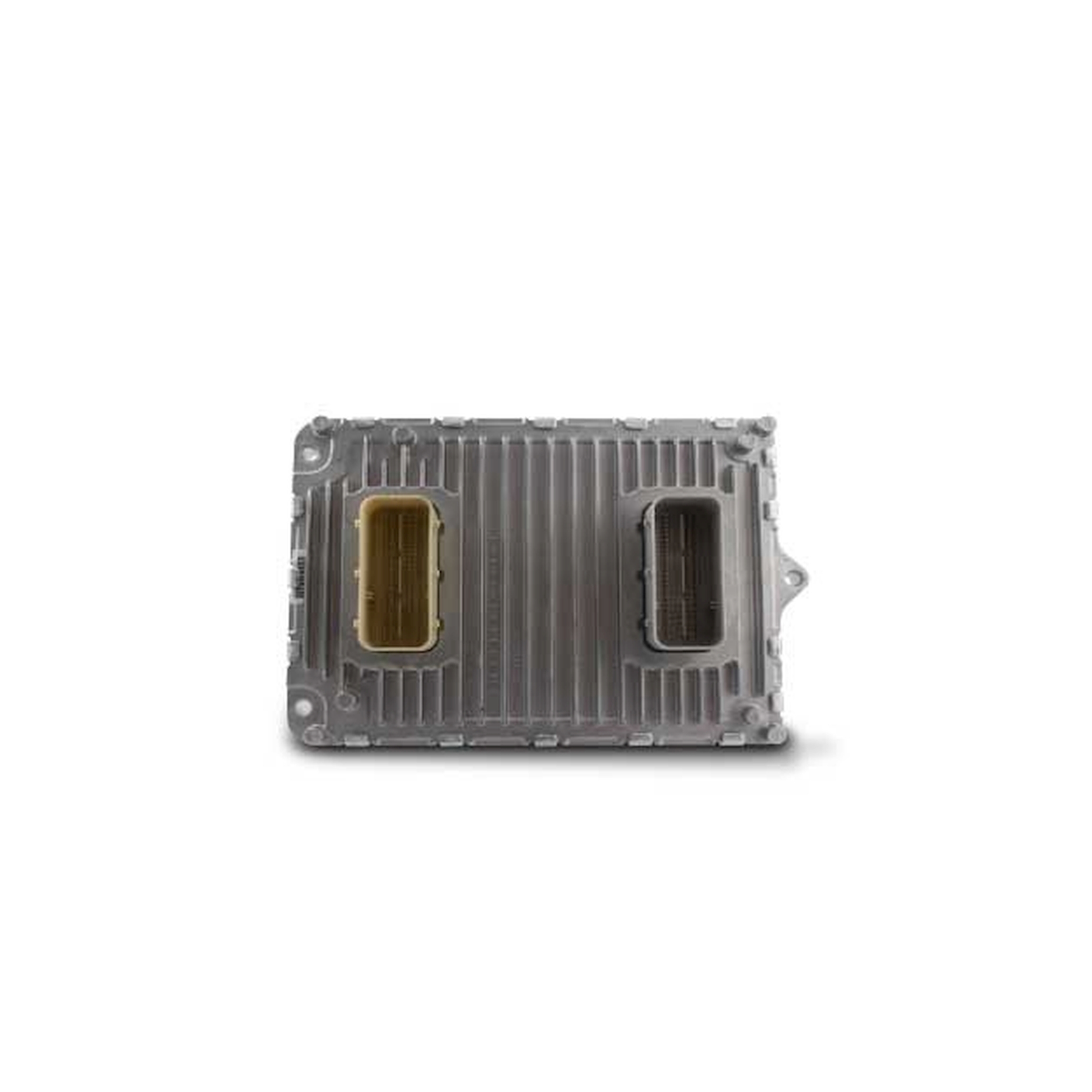

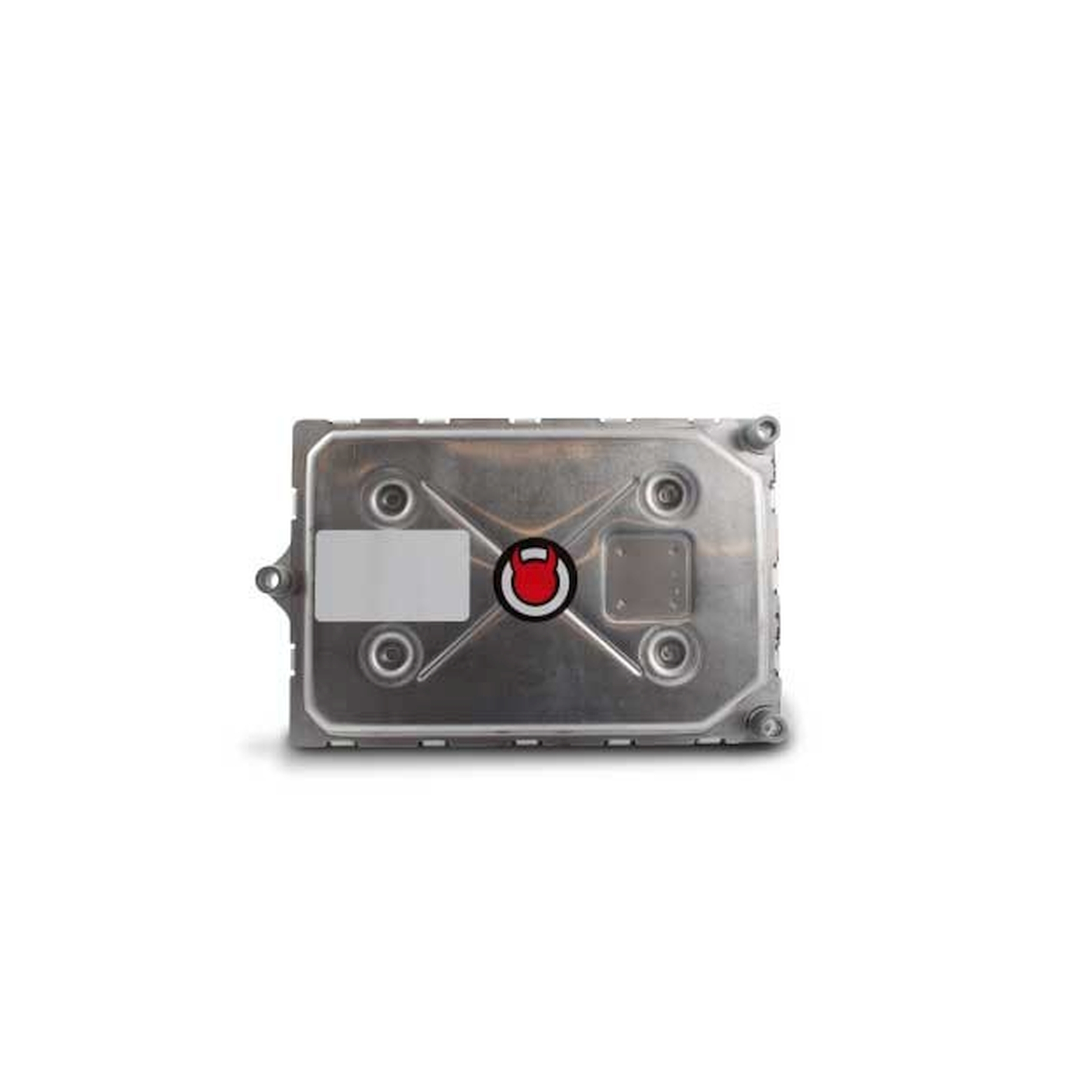

• Includes PCM programmed to your vehicle and Trinity 2
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes

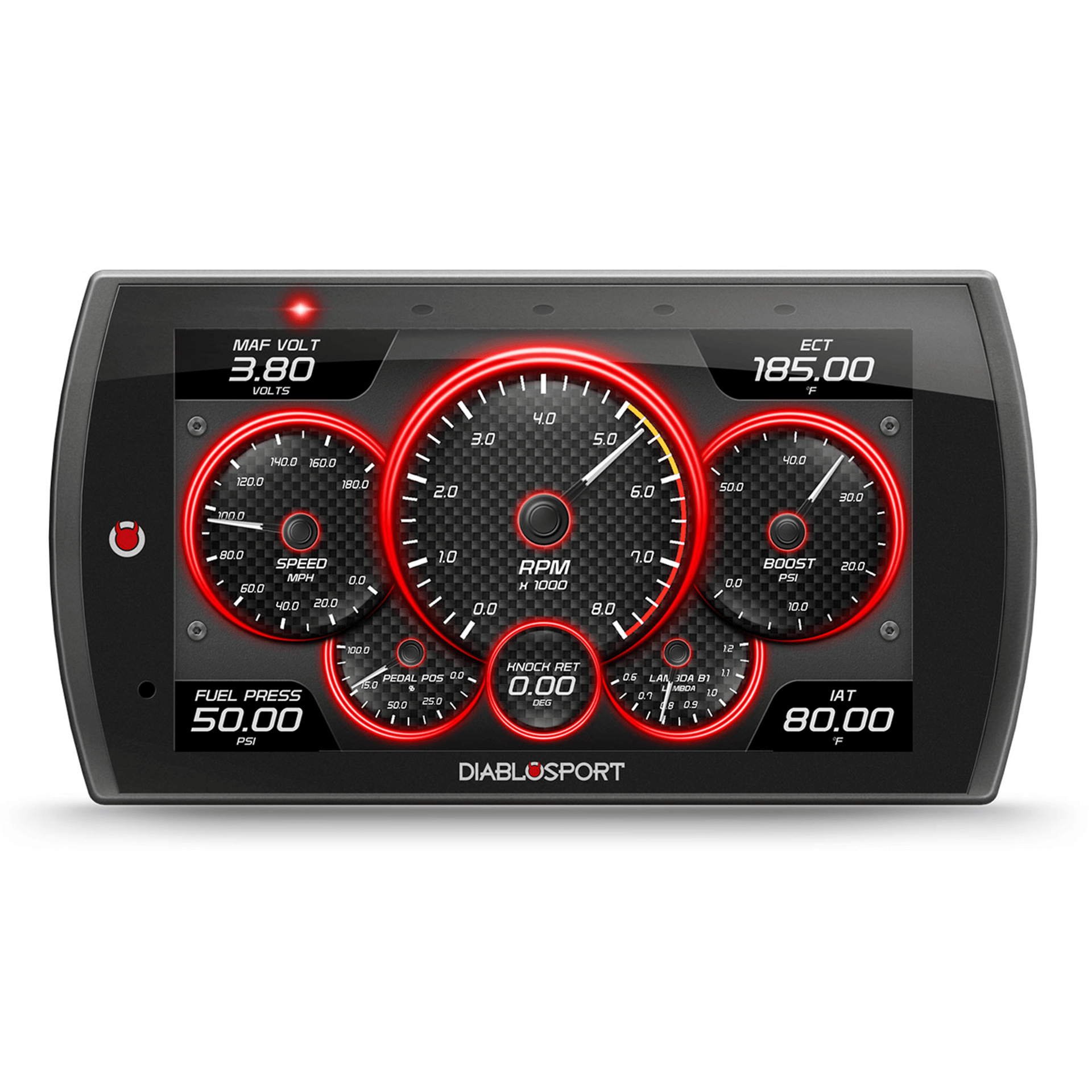

• Customizable gauge layouts
• Upload your own background images
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat

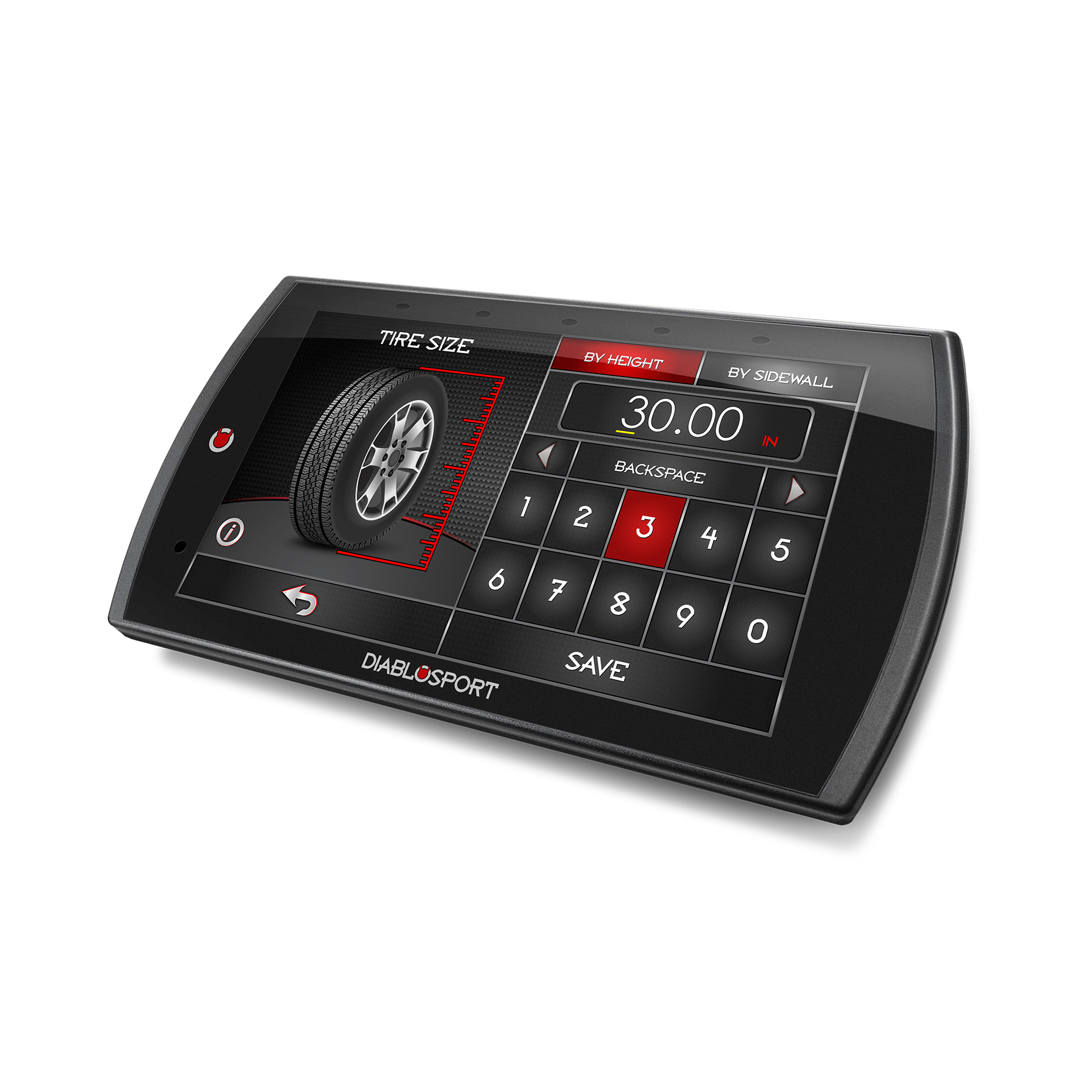

• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Alerts and Records: Yes
• Auto Dimming Screen: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 4
• Erases Fault Code: Yes
• Grade Type: Regular Performance
• Instruction Manual Included: Yes
• Performance Tests: Yes
• Performance Tunes: Yes
• Personal Computer and Mac Compatible: Yes
• Pods and Mounts Available: Yes
• Product Type: Tuner/PCM Pkgs.
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Systems Covered: Engine Transmission
• Upgradable: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
