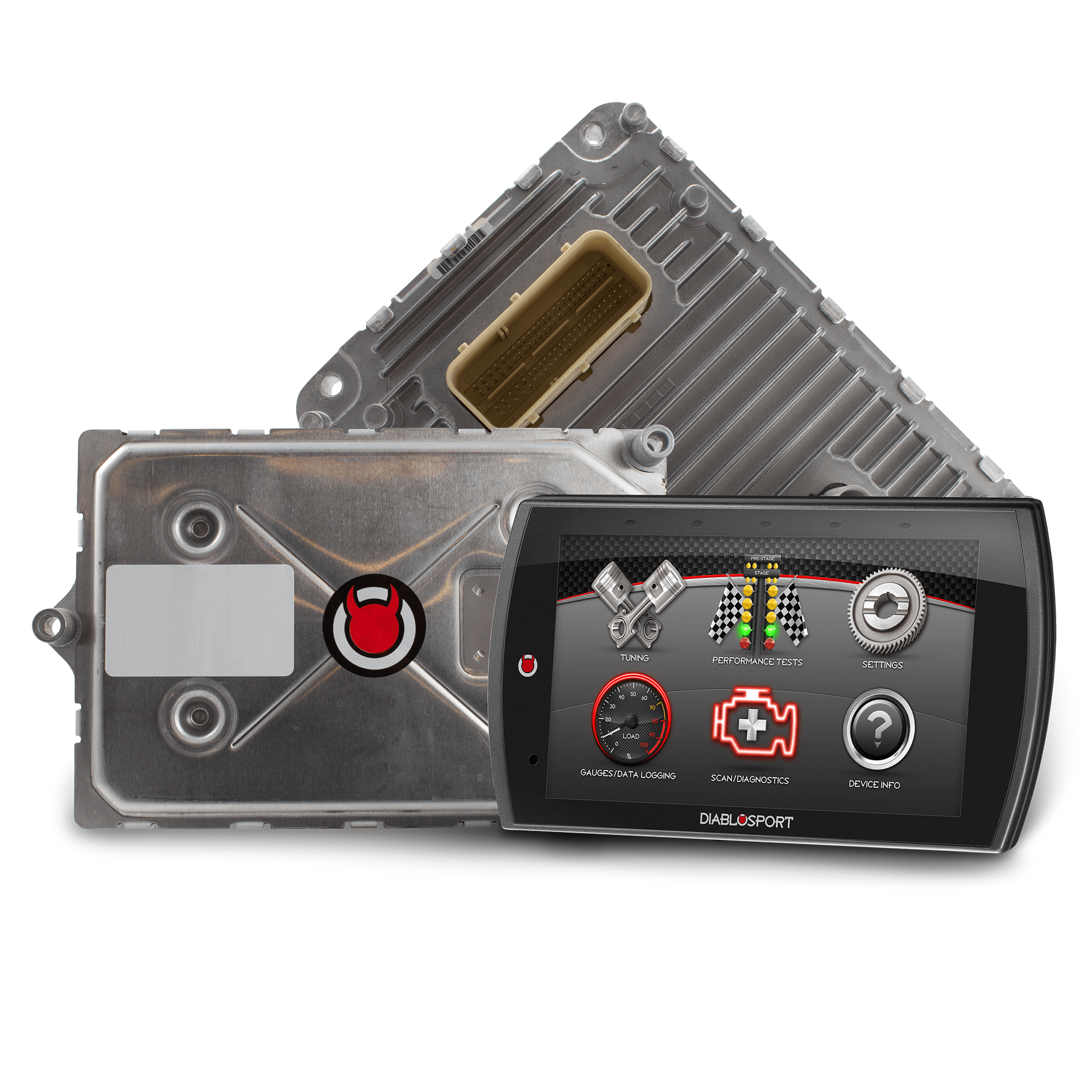

The Diablo Sport Trinity T2 Platinum + Unlocked PCM Kit is the most advanced tuning and monitoring package for the 2018 Ram 1500 5.7L HEMI

Factory PCMs prevent traditional tuning, but this kit includes everything you need-an unlocked Diablo Sport Modified PCM and the Trinity T2 Platinum programmer-to safely unlock your truck's hidden potential.

With dyno-proven calibrations preloaded, the Trinity T2 Platinum delivers up to 30 rear-wheel horsepower gains, improved torque, sharper throttle response, and refined transmission behavior for quicker, smoother shifts

The result is a Ram that accelerates harder, tows stronger, and responds instantly to your right foot-perfect for both daily driving and heavy-duty hauling

The T2 Platinum also supports CMR custom tuning, giving you access to Diablo Sport's nationwide tuner network for dyno-proven files built around your bolt-ons or advanced upgrades

With built-in data logging, diagnostics, and performance testing, you can monitor and fine-tune performance as your truck evolves

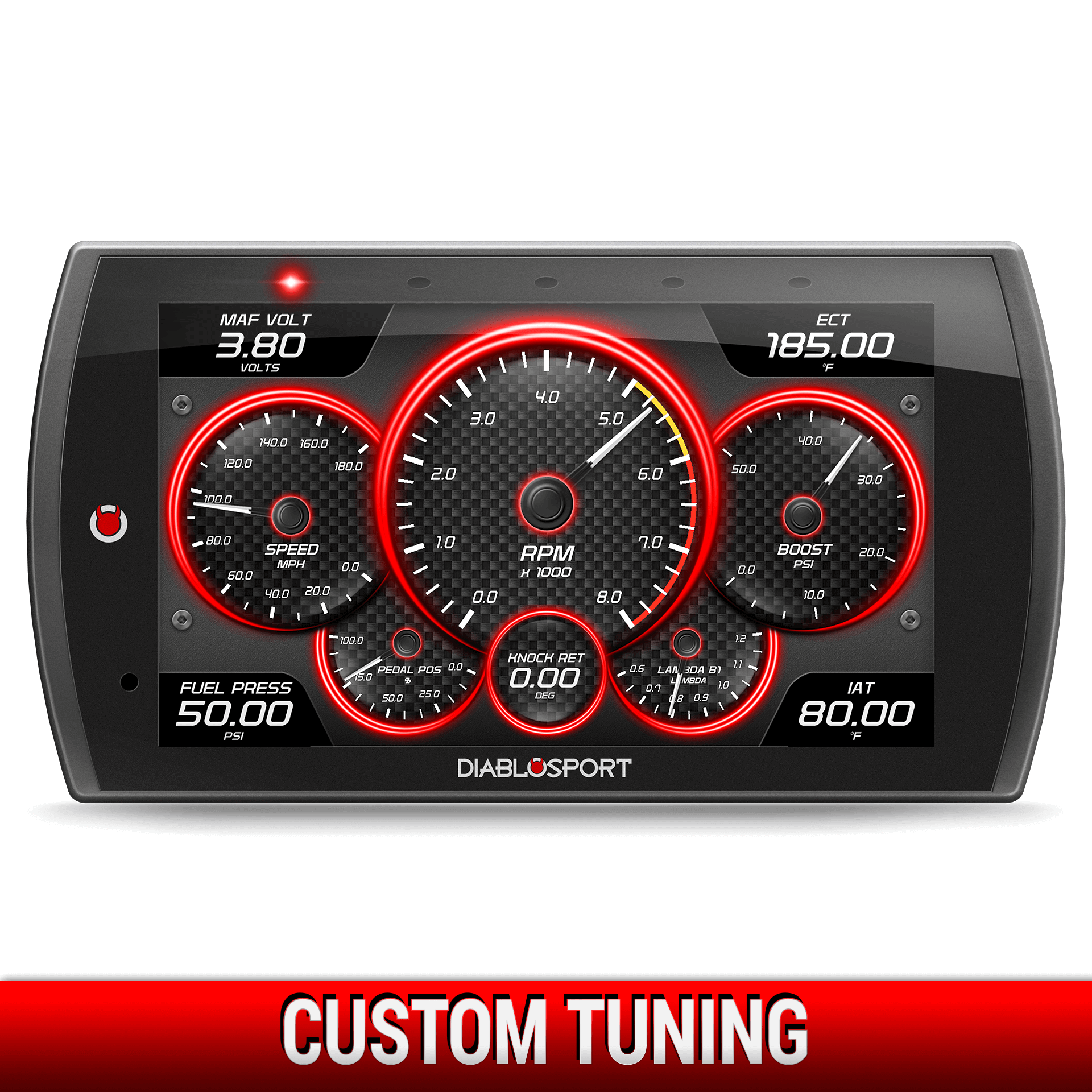

Featuring a brilliant 5-inch full-color touchscreen, the Trinity T2 Platinum doubles as a powerful monitor, delivering real-time engine data, customizable gauge layouts, and performance timers-all in one sleek interface

For 2018 Ram 1500 5.7L owners who want serious horsepower gains, sharper drivability, and the flexibility to tow with confidence, the Trinity T2 Platinum + Unlocked PCM Kit is the ultimate performance upgrade

• 2018 Ram 1500 5.7
• Add 25-30 rwhp over stock on premium fuel
• Adjust throttle response for optimal pedal feel
• Remove vehicle top speed limiter
• Adjust idle RPM
• Tunes for 87, 91 and 93 octane fuel included
• Performance TCM tune for 8 speed transmission included
• Disable MDS

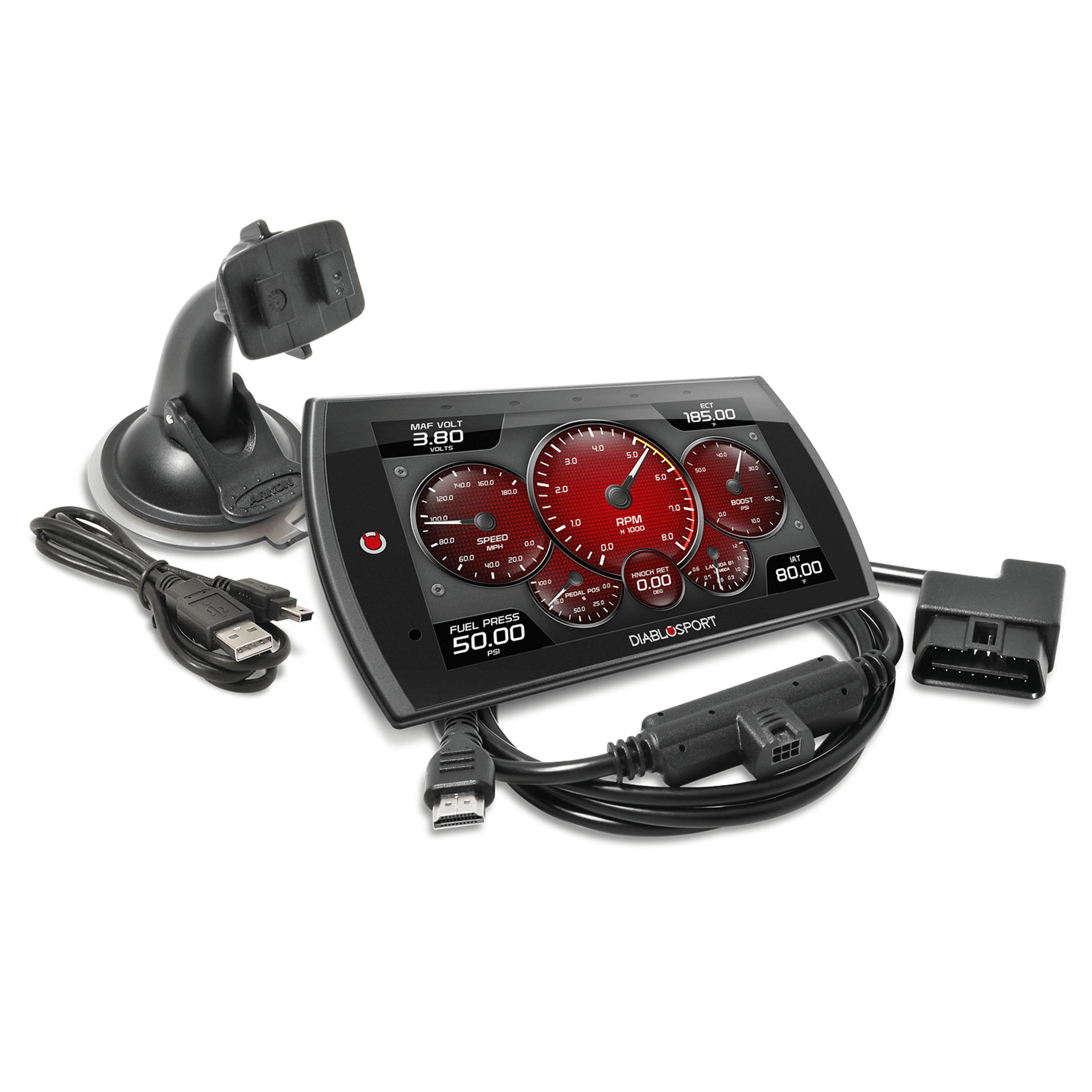

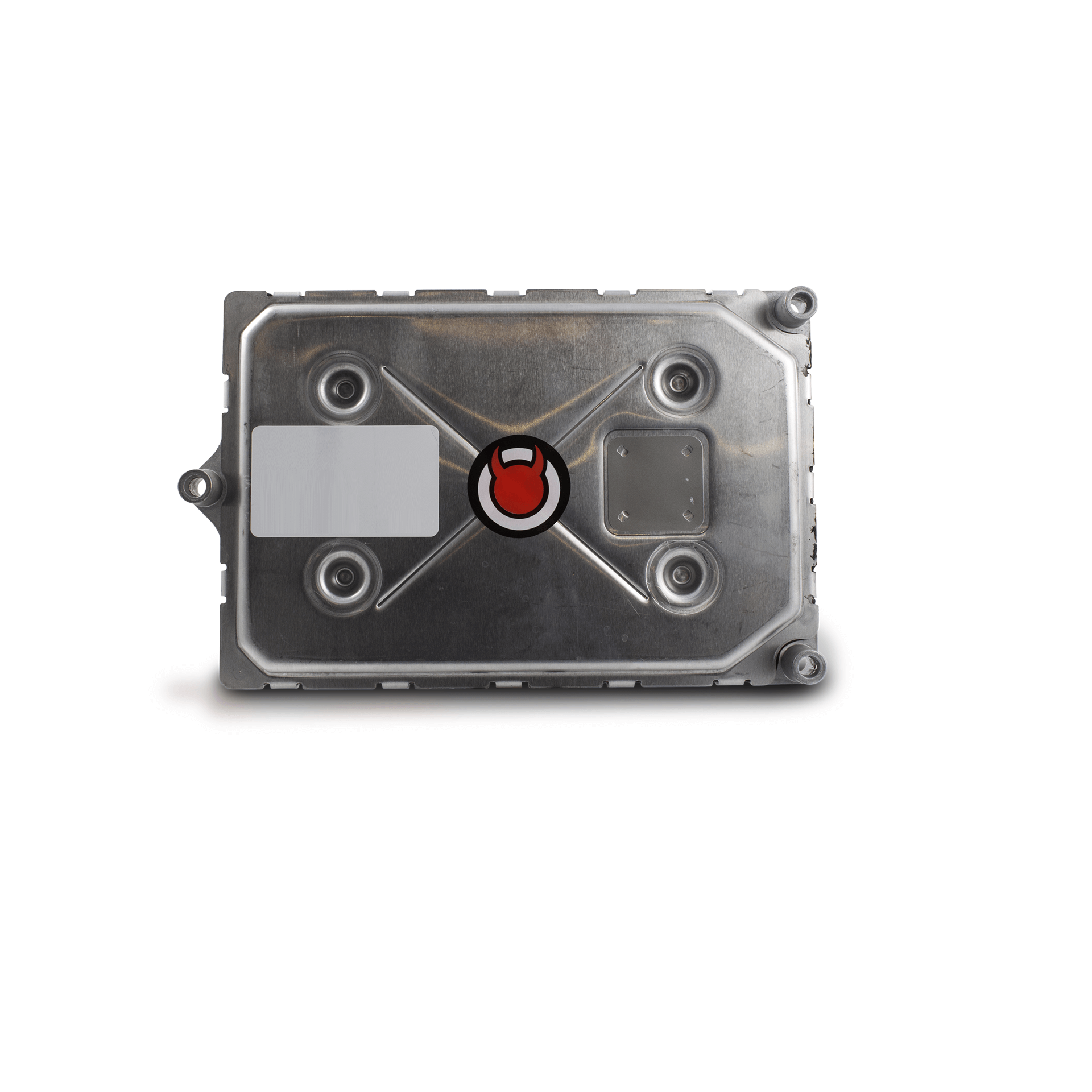

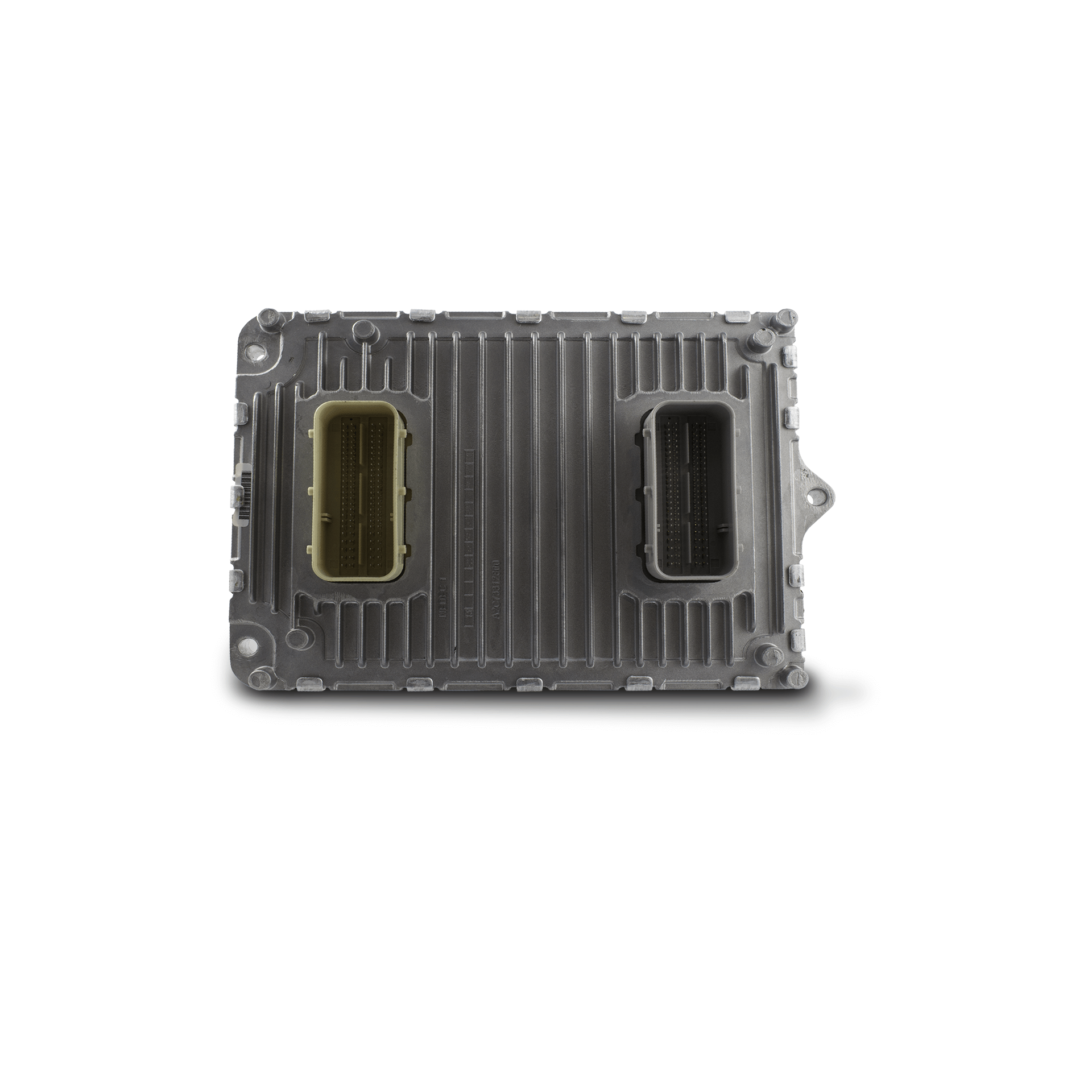

• Includes PCM programmed to your vehicle and Trinity 2
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes
• Customizable gauge layouts
• Upload your own background images
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat
• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Alerts and Records: Yes
• Auto Dimming Screen: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 7
• Erases Fault Code: Yes
• Grade Type: Performance
• Instruction Manual Included: Yes
• Performance Tests: Yes
• Performance Tunes: Yes
• Personal Computer and Mac Compatible: Yes
• Product Type: In-Cabin Tuner Tuner/PCM Pkgs.
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Systems Covered: Engine Transmission
• Upgradable: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
