The Diablo Sport Trinity T2 Platinum + Unlocked PCM Kit is the most advanced tuning and monitoring upgrade for the 2019 Ram 1500 5.7L HEMI

These trucks are built with locked PCMs that prevent traditional tuning-but this kit includes a Diablo Sport Modified PCM and the powerful Trinity T2 Platinum programmer, giving you everything you need to safely unleash your Ram's performance.

With dyno-proven performance tunes preloaded, the T2 Platinum delivers up to 30 rear-wheel horsepower gains, stronger torque, sharper throttle response, and refined 8-speed transmission calibrations for smoother, quicker shifts

These improvements not only sharpen acceleration but also enhance towing and hauling capability, giving your Ram the power and responsiveness it deserves

The kit also enables MDS (Multi-Displacement System) disable, keeping your HEMI in full V8 mode whenever you want maximum performance and sound

For those adding bolt-ons or advanced upgrades, the Platinum T2 supports CMR custom tuning, giving you access to Diablo Sport's nationwide network of tuners for dyno-proven, vehicle-specific calibrations

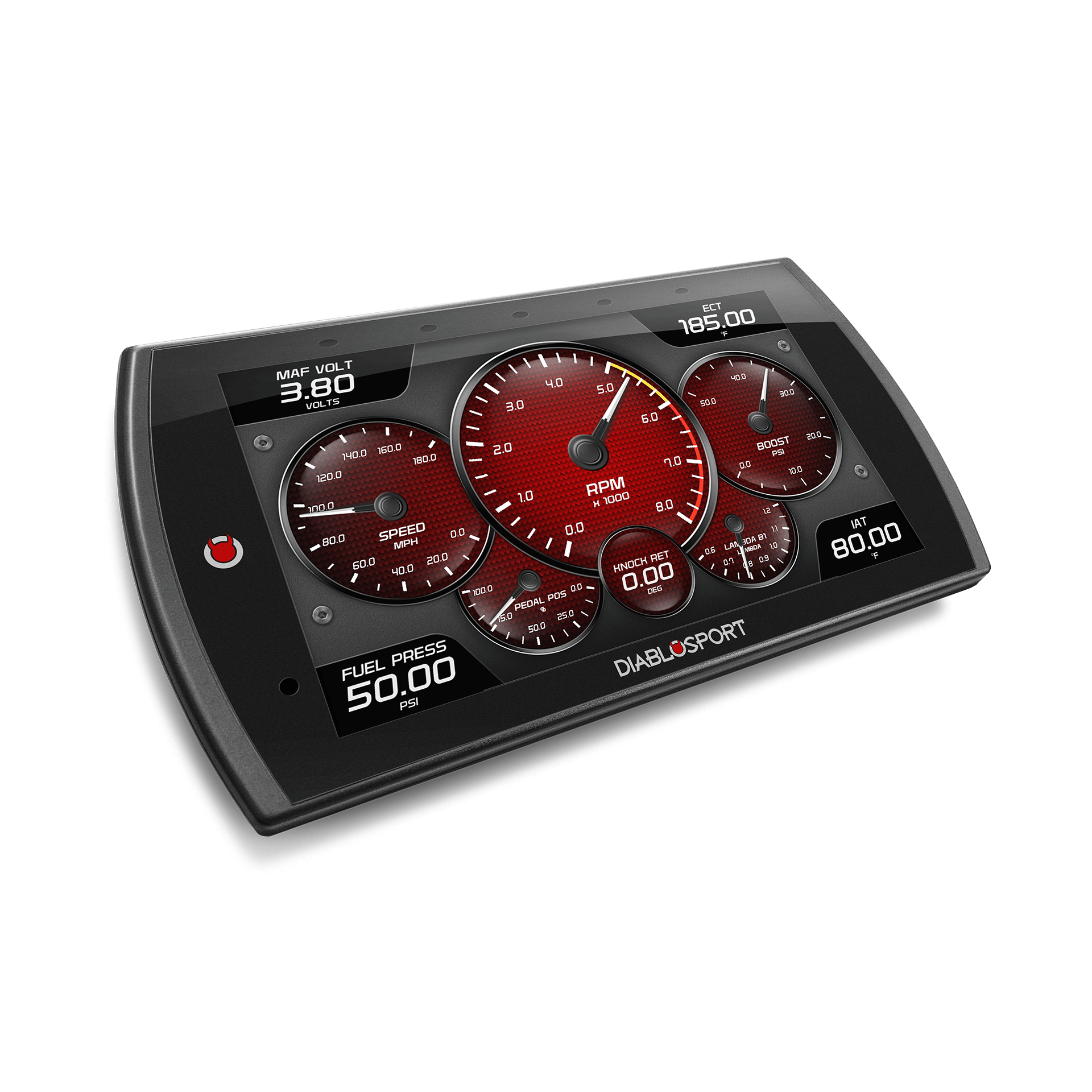

The Trinity T2 doubles as a high-end monitoring hub, featuring a brilliant 5-inch color touchscreen, swipe functionality, customizable gauge layouts, performance timers, and real-time data tracking

For 2019 Ram 1500 5.7L HEMI owners who want serious horsepower gains, towing strength, MDS disable, and advanced tuning support, the Trinity T2 Platinum + Unlocked PCM Kit is the ultimate upgrade

• 2019 Ram 1500 5.7
• Add 25-30 rwhp on premium fuel
• Tunes for 87, 91 and 93 octane fuel provided
• Performance TCM tune included
• Supports custom tuning through our CMR dealer network

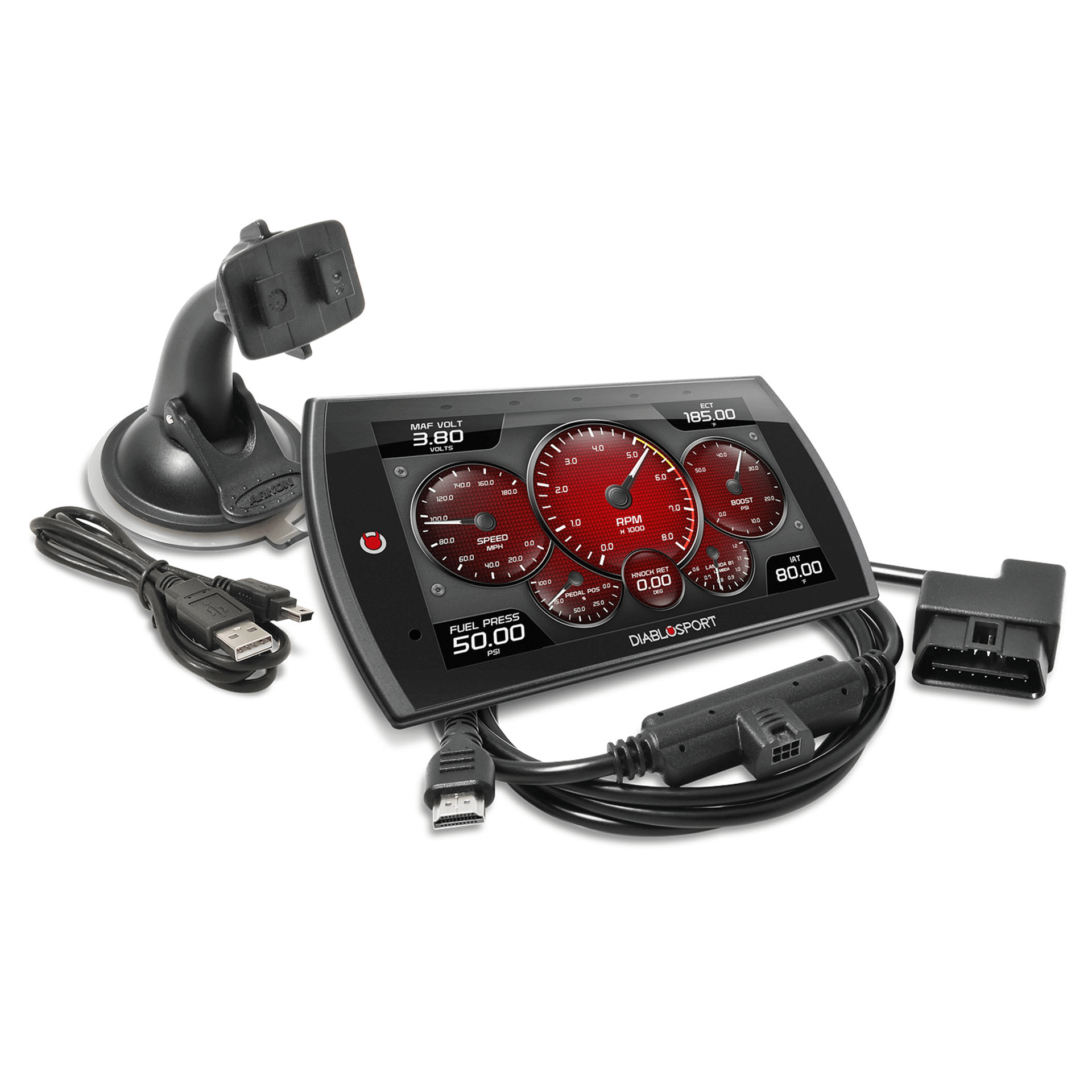

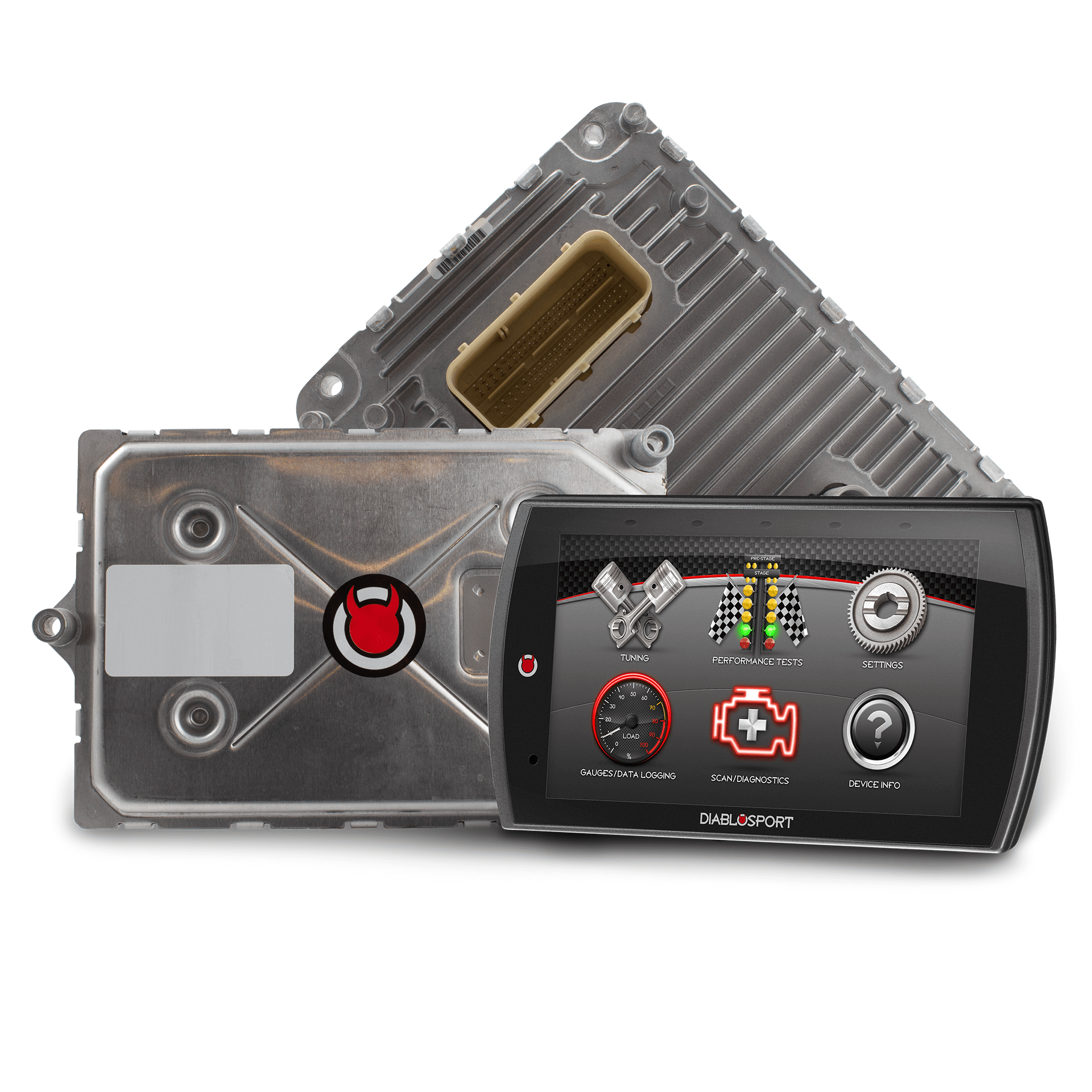

• Includes PCM programmed to your vehicle and Trinity 2
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes

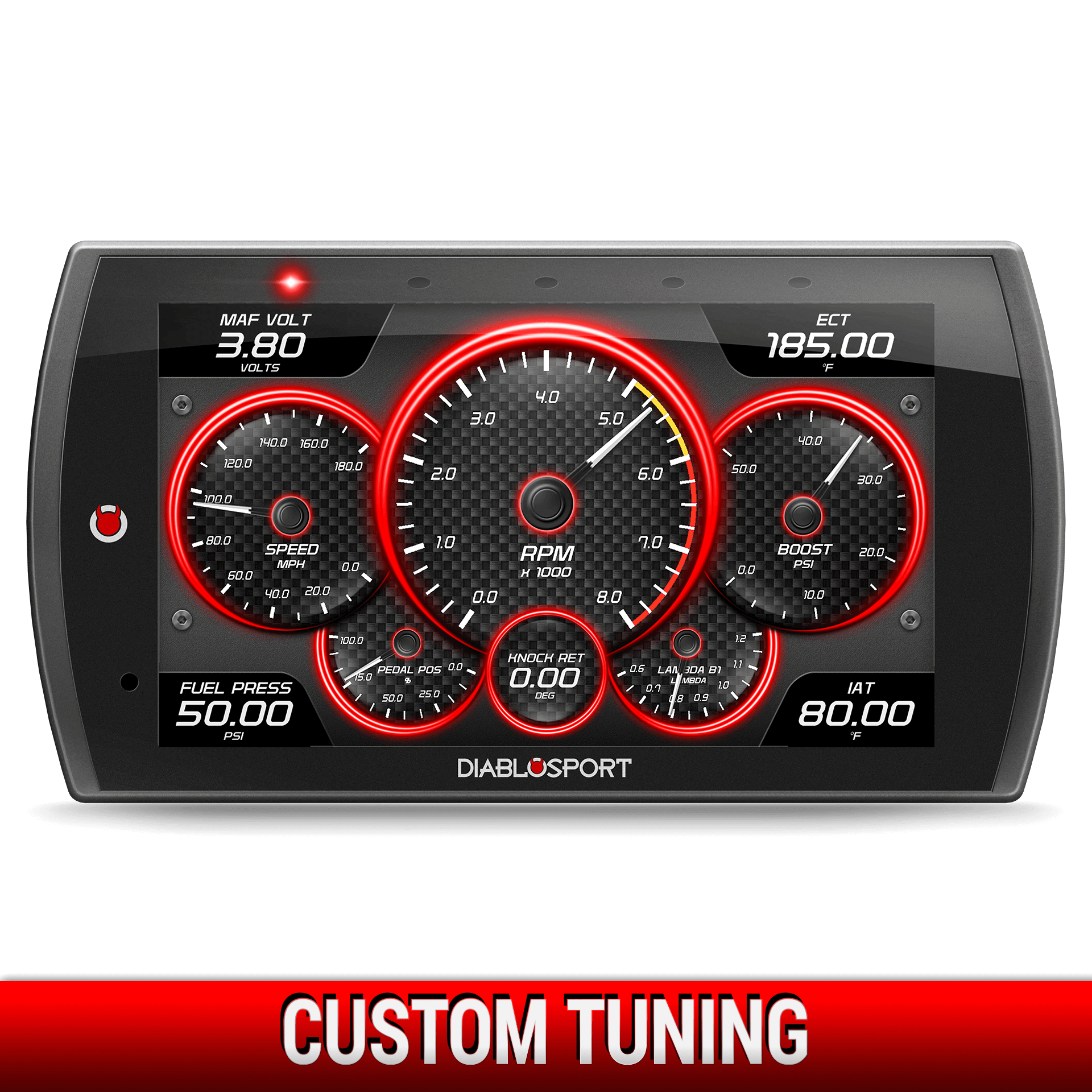

• Customizable gauge layouts
• Upload your own background images
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat

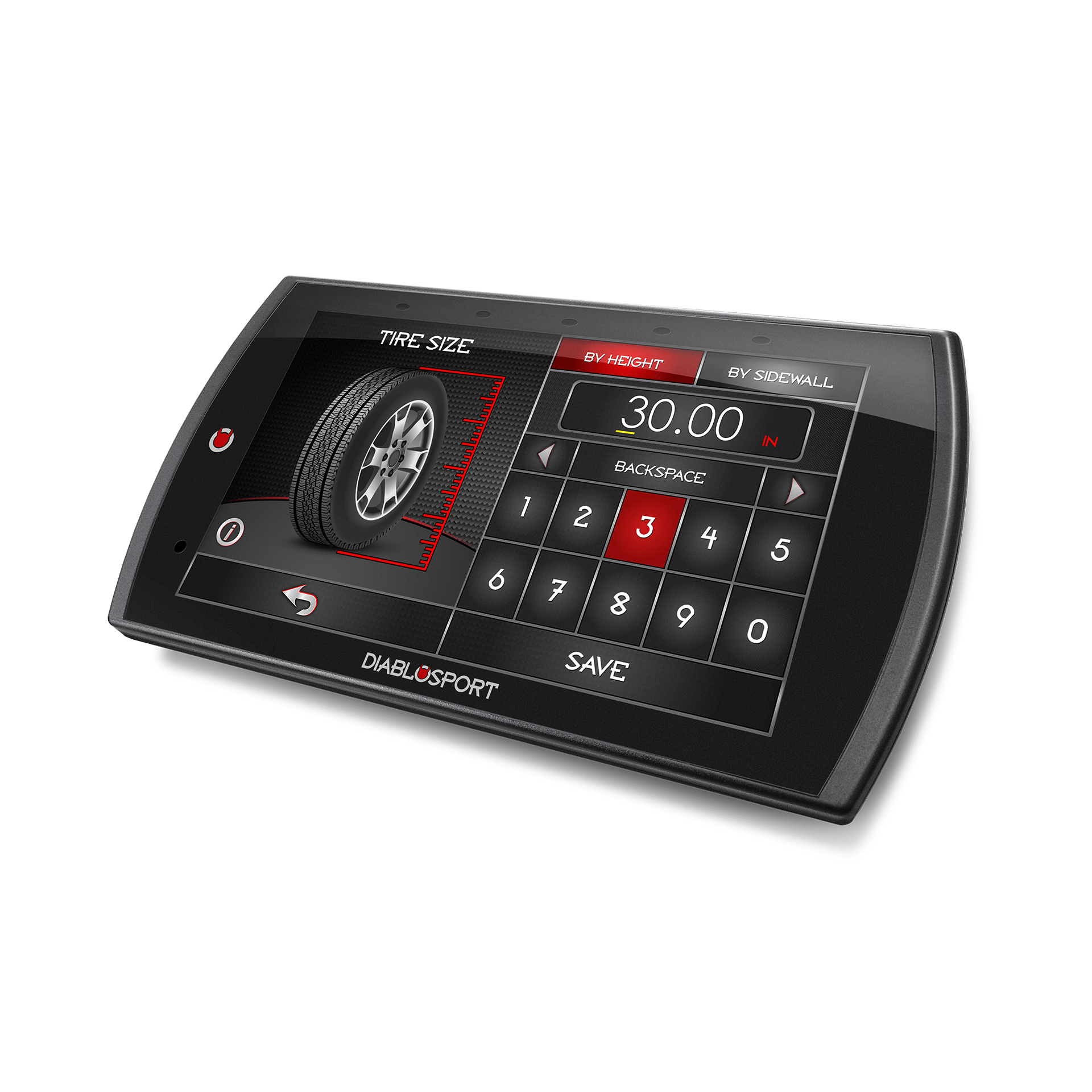

• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Alerts and Records: Yes
• Auto Dimming Screen: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 7
• Erases Fault Code: Yes
• Grade Type: Regular Performance
• Instruction Manual Included: Yes

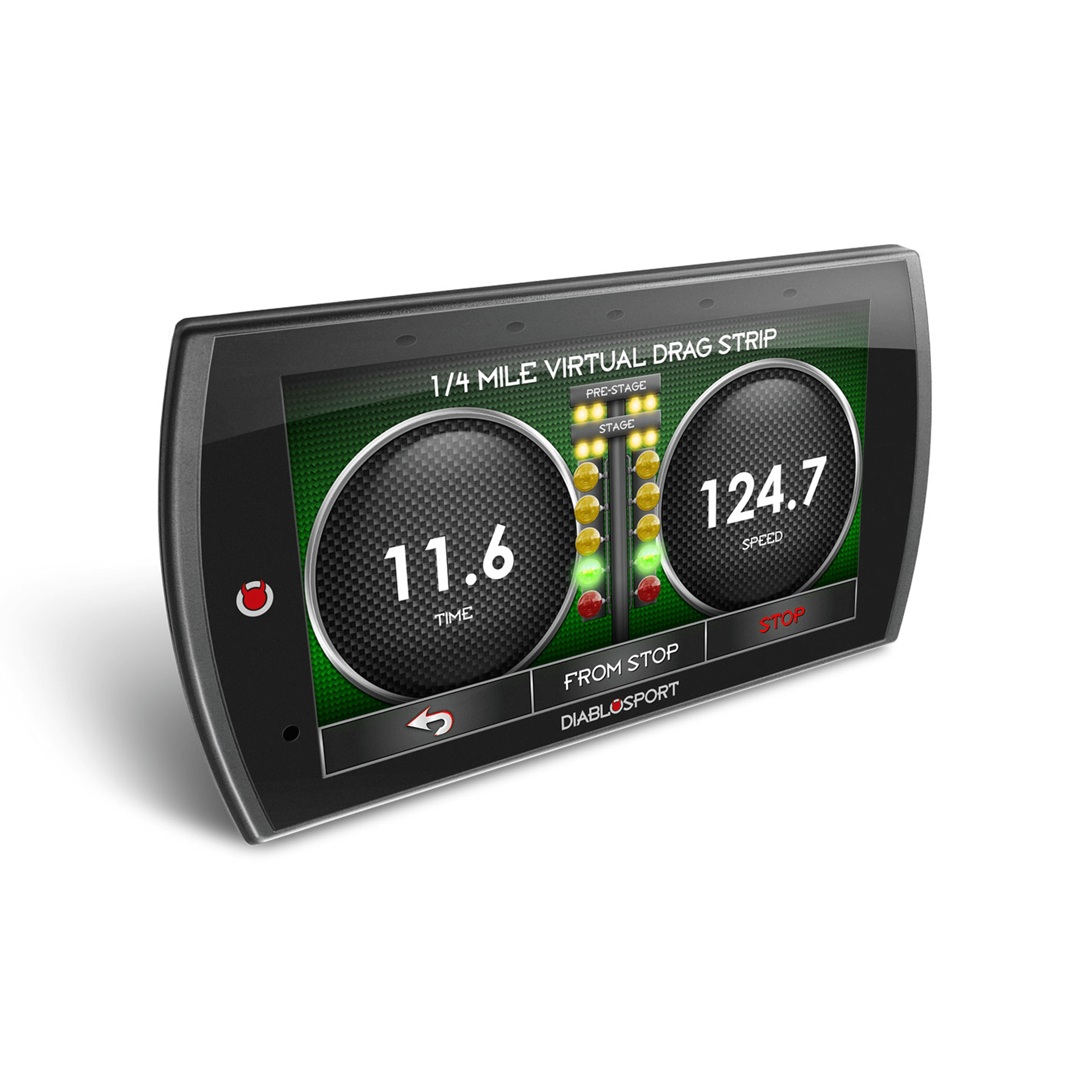

• Performance Tests: Yes
• Performance Tunes: Yes
• Personal Computer and Mac Compatible: Yes
• Pods and Mounts Available: Yes
• Product Type: In-Cabin Tuner Tuner/PCM Pkgs.
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Systems Covered: Engine Transmission
• Upgradable: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
