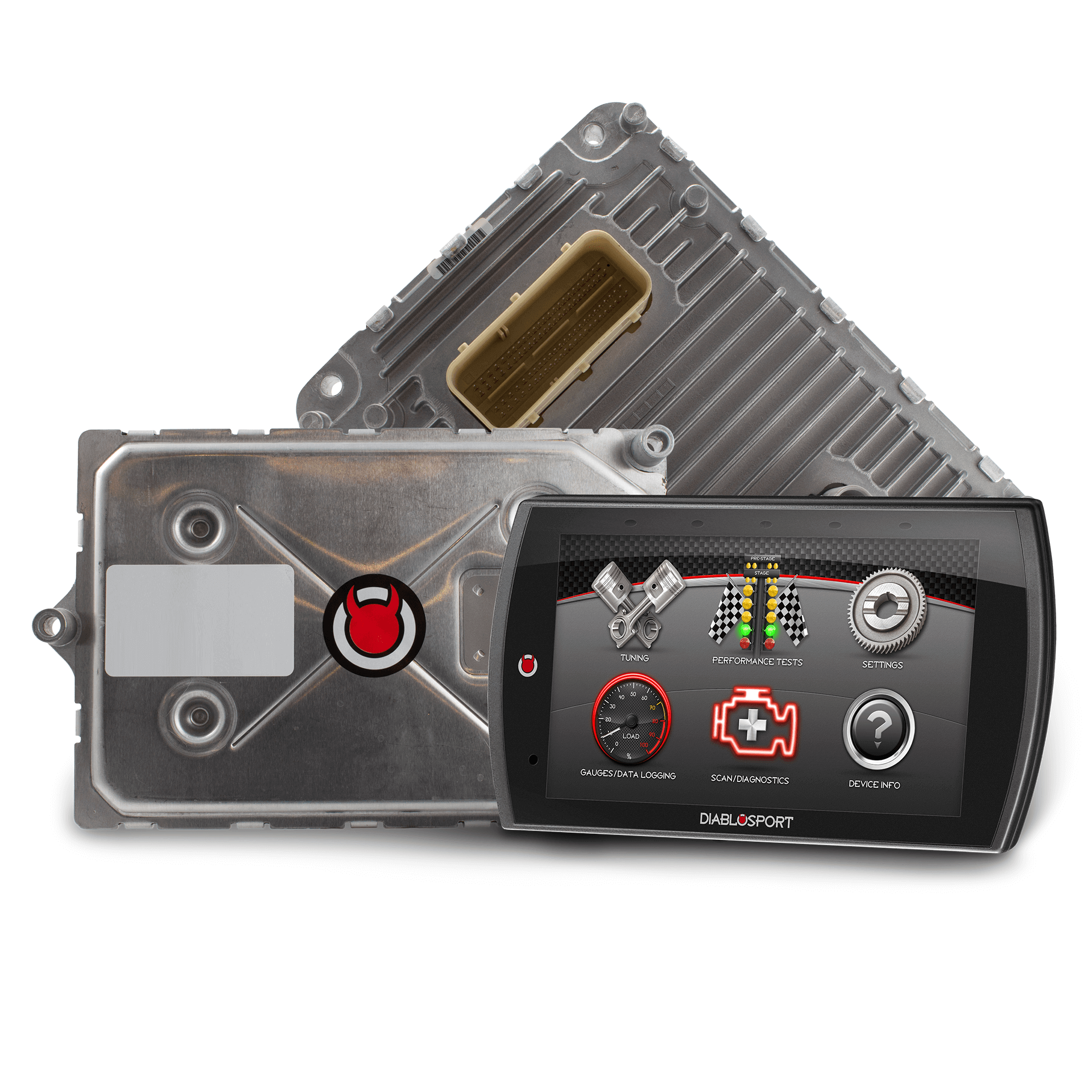

The Diablo Sport Trinity T2 Platinum + Unlocked PCM Kit is the ultimate tuning and monitoring solution for the 2019 Ram 1500 5.7L HEMI e Torque From the factory, these trucks ship with locked PCMs that block tuning, but this kit includes everything you need-an unlocked Diablo Sport Modified PCM and the Trinity T2 Platinum programmer-to safely unleash your Ram's hidden power.

With dyno-tested calibrations preloaded, the T2 Platinum delivers up to 30 rear-wheel horsepower gains, stronger torque, sharper throttle response, and refined 8-speed automatic transmission behavior for smoother, more confident shifts

These improvements provide better towing capability and everyday drivability The kit also enables MDS (Multi-Displacement System) disable, giving you full V8 power whenever you want it

For those adding bolt-ons or advanced upgrades, the Platinum T2 supports CMR custom tuning, allowing you to work with Diablo Sport's nationwide network of tuners for dyno-proven calibrations tailored to your build

Built-in data logging, diagnostics, and performance testing provide the tools to monitor and refine your truck's setup as it evolves

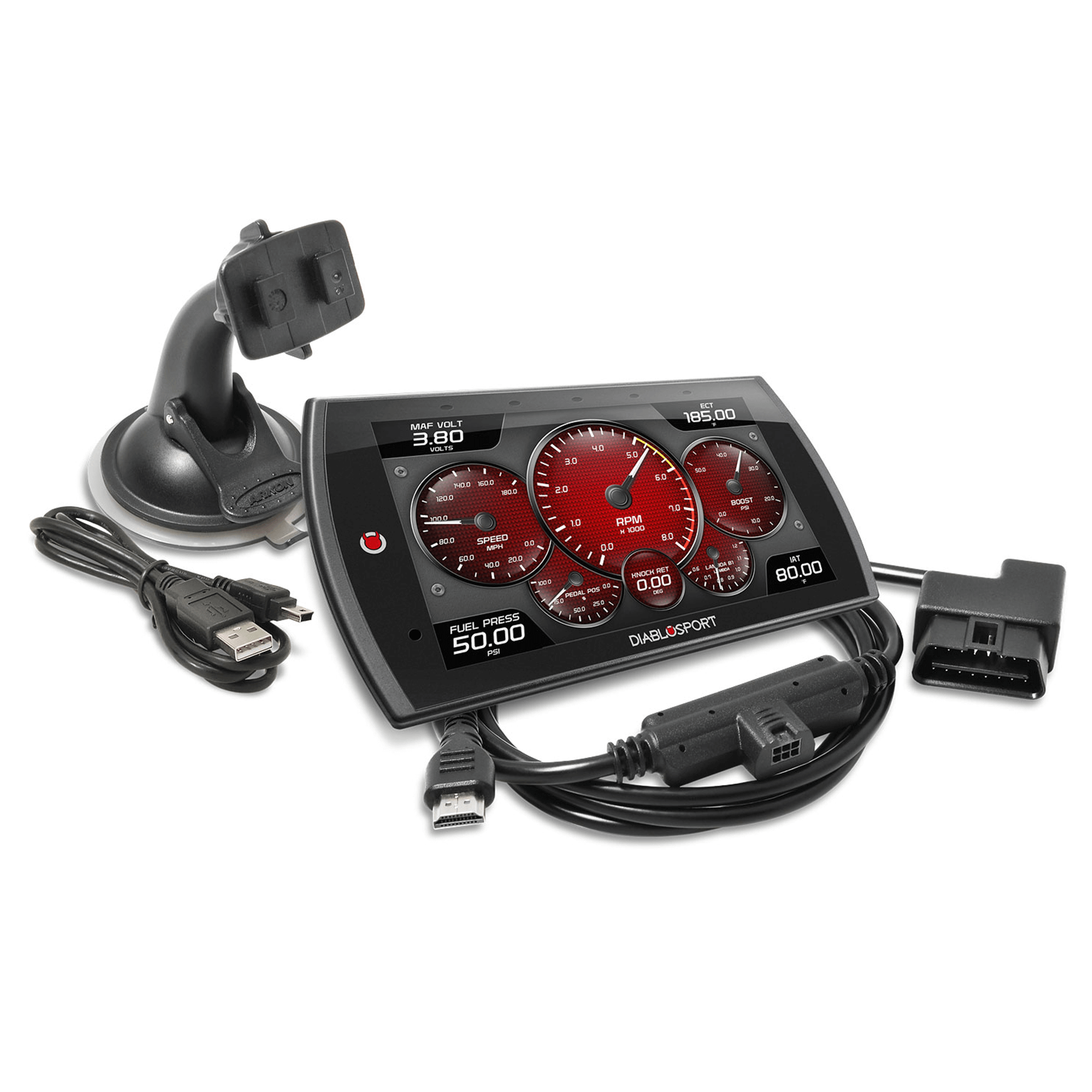

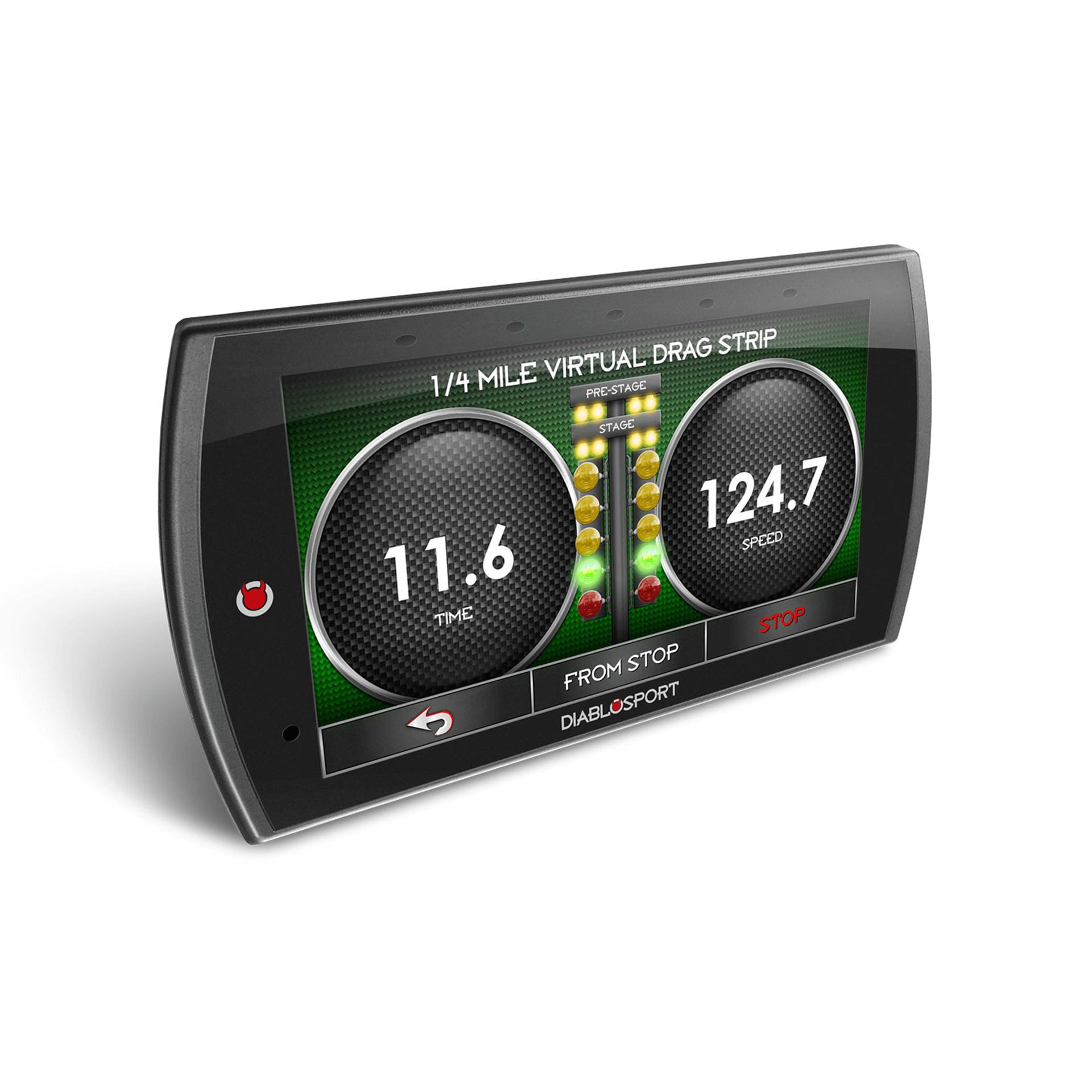

The Trinity T2 also functions as a professional-grade monitor with a brilliant 5-inch full-color touchscreen, swipe functionality, customizable gauge layouts, performance timers, and real-time data tracking

For 2019 Ram 1500 e Torque owners who want serious horsepower gains, MDS disable, sharper drivability, and towing strength, the Trinity T2 Platinum + Unlocked PCM Kit is the ultimate upgrade

• 2019 Ram 1500 5.7 e Torque
• Add 25-30 rwhp on premium fuel
• Disable MDS
• Adjust throttle response for optimal pedal feel
• Remove vehicle top speed limiter
• Adjust idle RPM
• Tunes for 87, 91 and 93 octane fuel included
• Performance TCM tune for 8 speed transmission included
• Includes PCM programmed to your vehicle and Trinity 2
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes

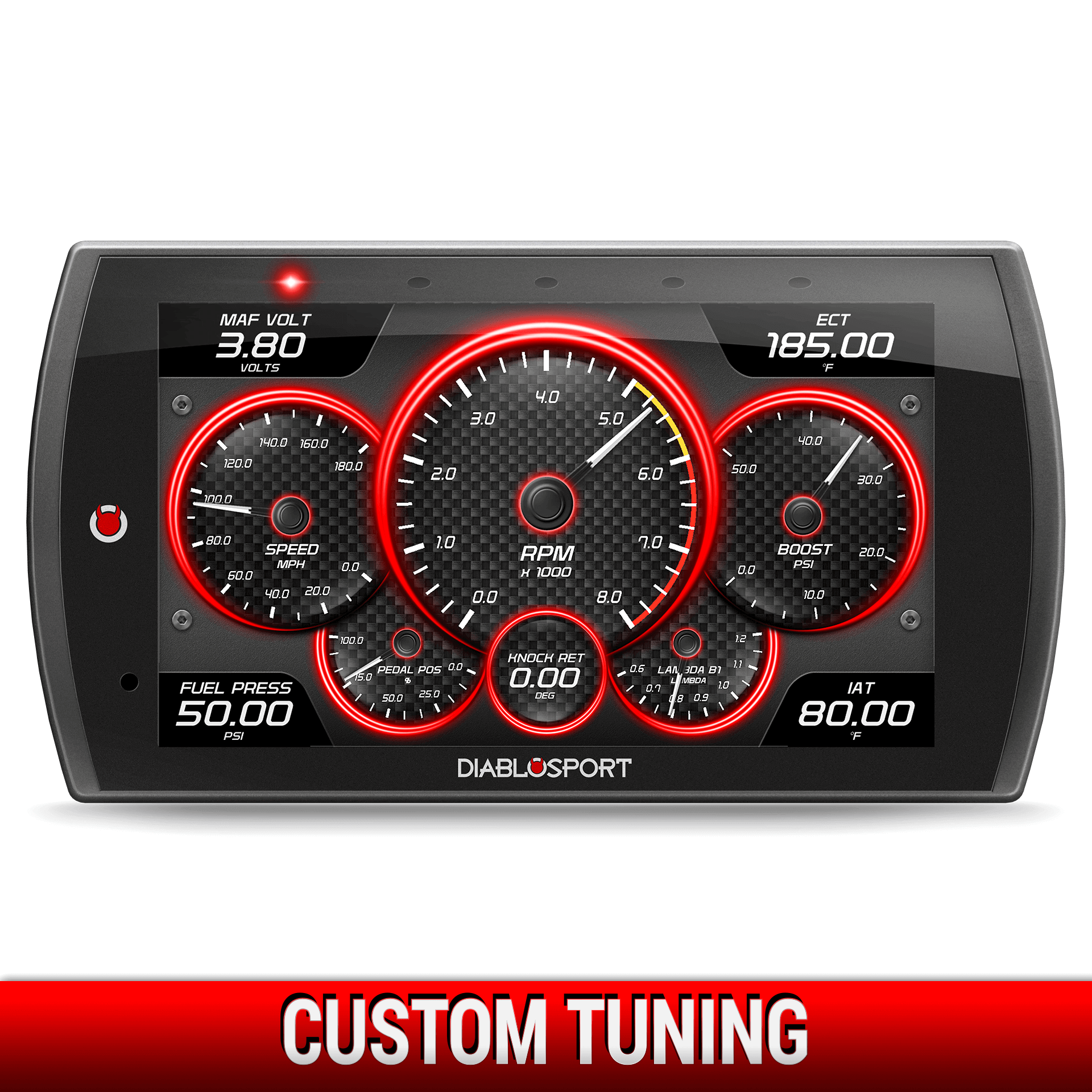

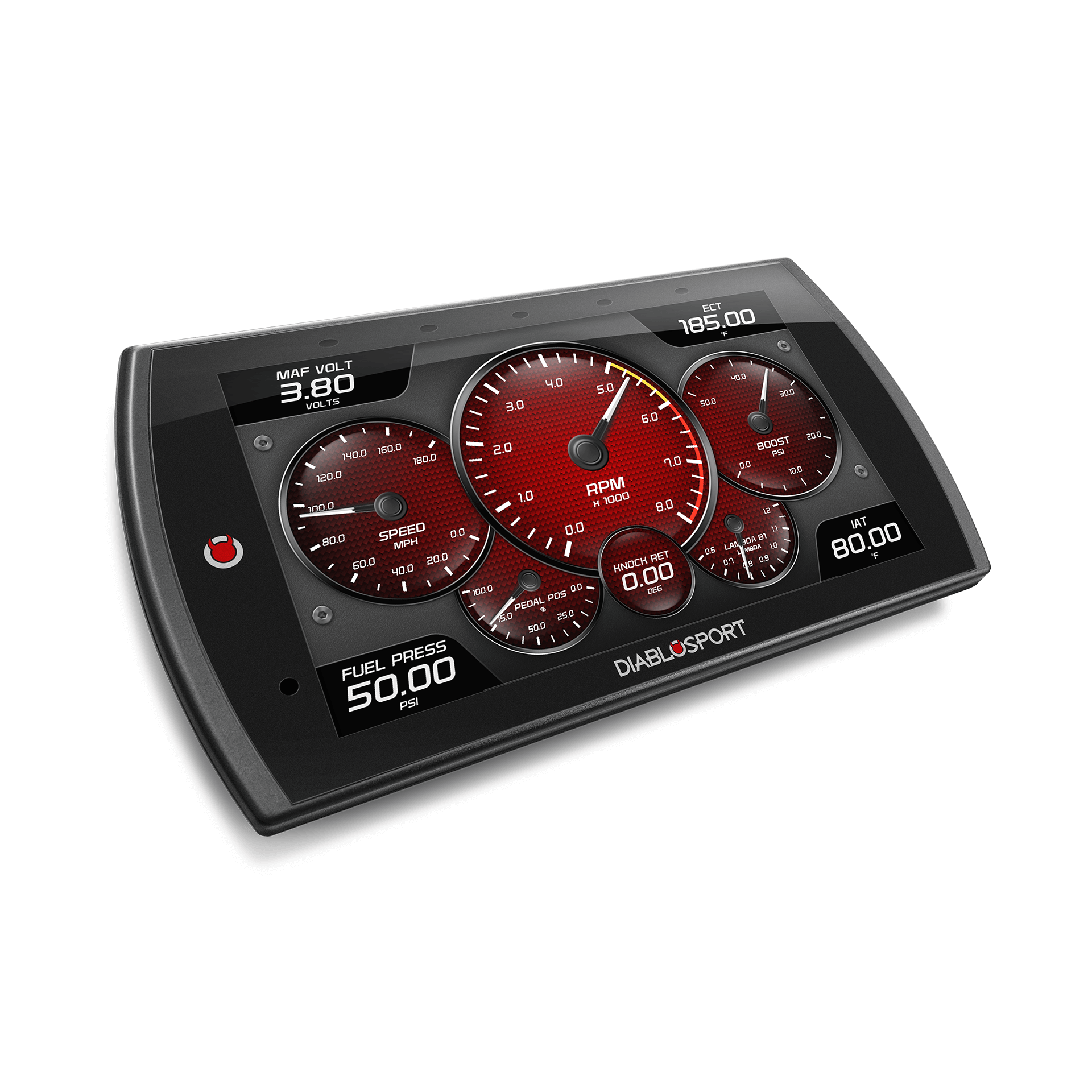

• Customizable gauge layouts
• Upload your own background images
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat

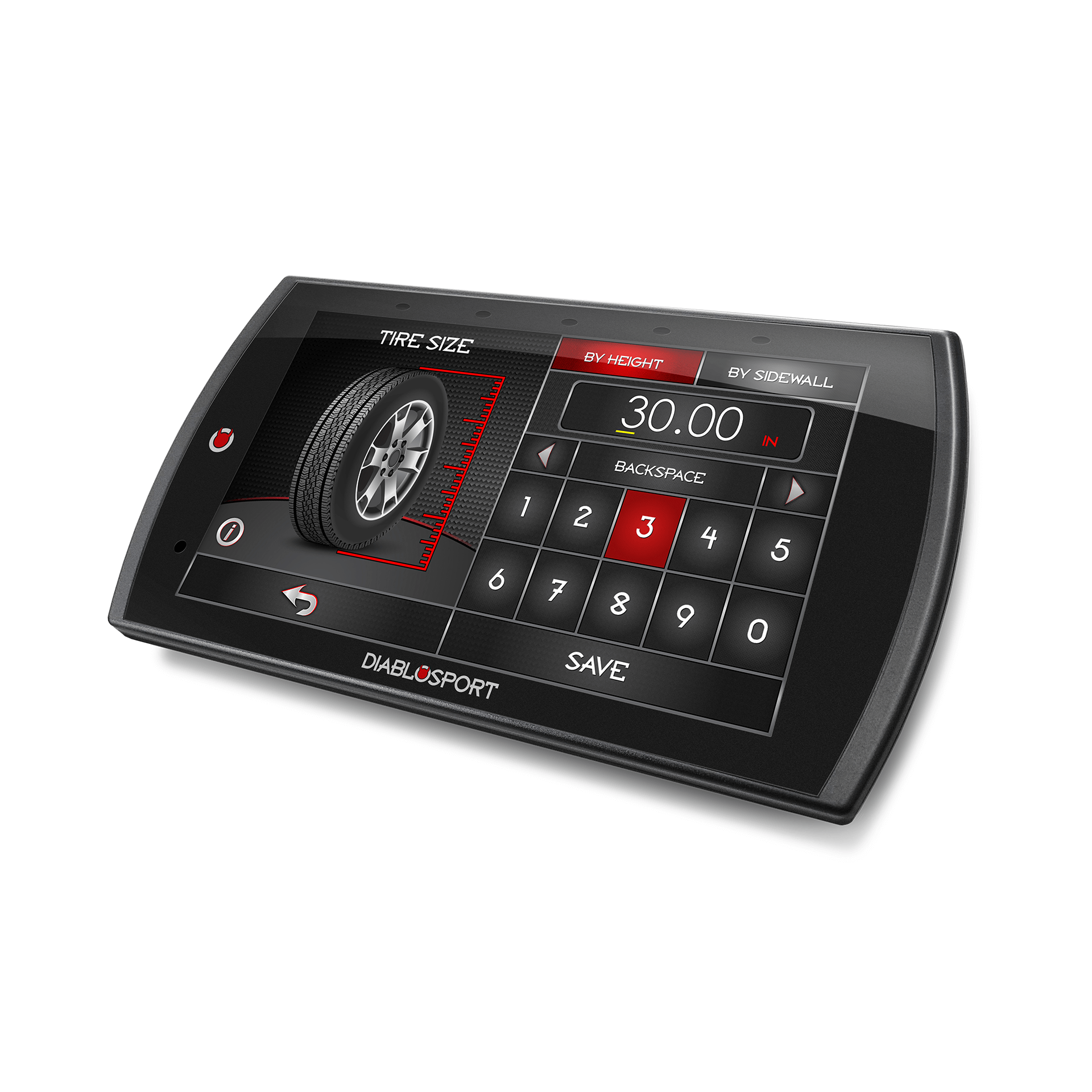

• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Alerts and Records: Yes
• Auto Dimming Screen: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 7
• Erases Fault Code: Yes
• Grade Type: Regular Performance
• Instruction Manual Included: Yes
• Performance Tests: Yes
• Performance Tunes: Yes
• Personal Computer and Mac Compatible: Yes
• Product Type: Tuner/PCM Pkgs.
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Systems Covered: Transmission Engine
• Upgradable: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
