The Diablo Sport Trinity T2 Platinum PKIT is the complete tuning and monitoring solution for the 2021 Ram 1500 5.7L HEMI e Torque These trucks feature locked factory PCMs that prevent traditional tuning, but this package provides everything you need to safely unlock your Ram's hidden performance potential.

The kit includes the powerful Trinity T2 Platinum handheld programmer plus an unlocked PCM, so you can start tuning right away while keeping your stock PCM safe and unaltered.

Preloaded with dyno-tested calibrations, the T2 Platinum delivers up to 25 RWHP gains, improved torque output, sharper throttle response, and refined 8-speed transmission behavior for quicker, smoother shifts

The result is a Ram that tows stronger, accelerates harder, and drives with far more confidence than stock

For enthusiasts planning upgrades, the Platinum T2 supports CMR custom tuning through Diablo Sport's nationwide network of professional tuners

With built-in data logging, you can track performance and fine-tune calibrations as your build evolves

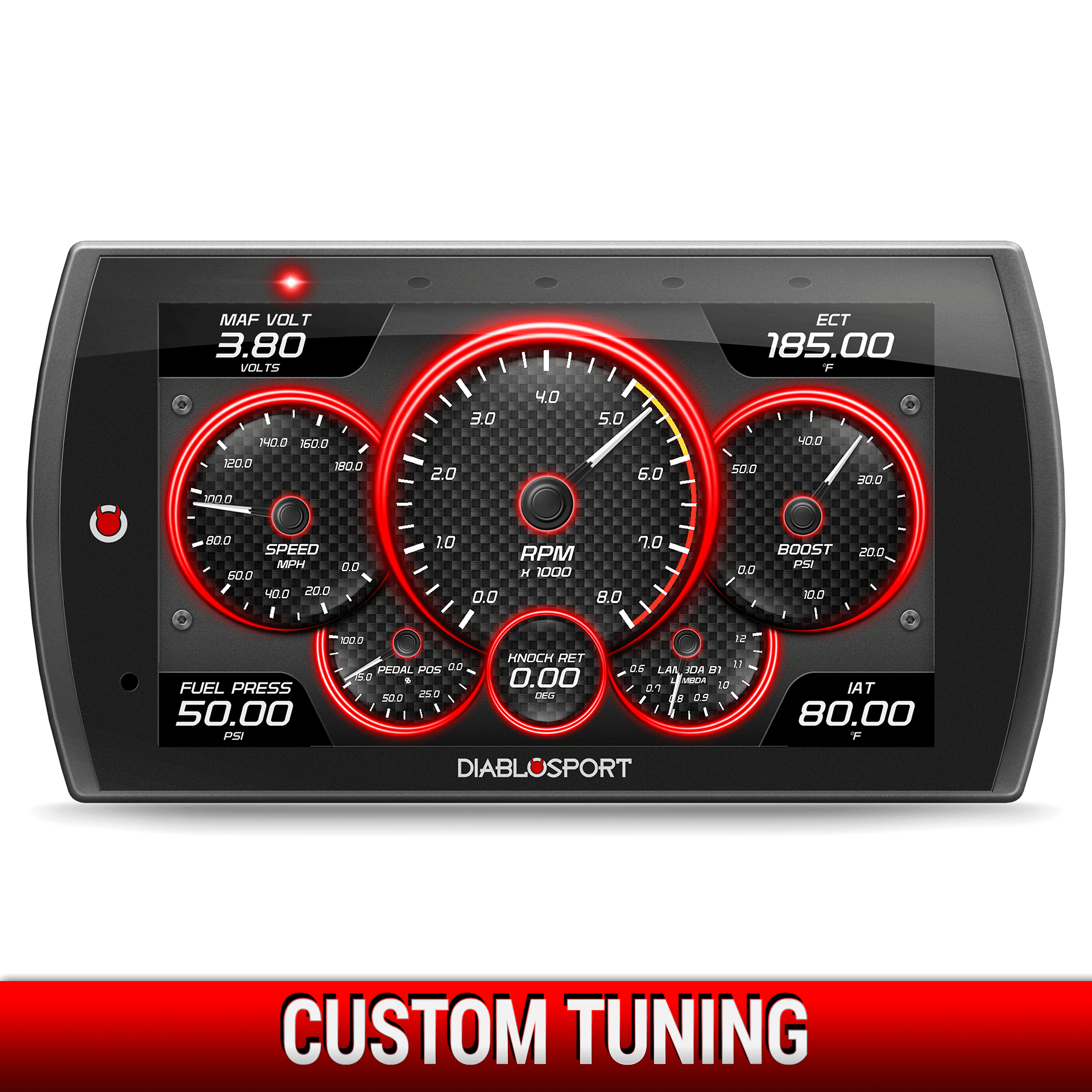

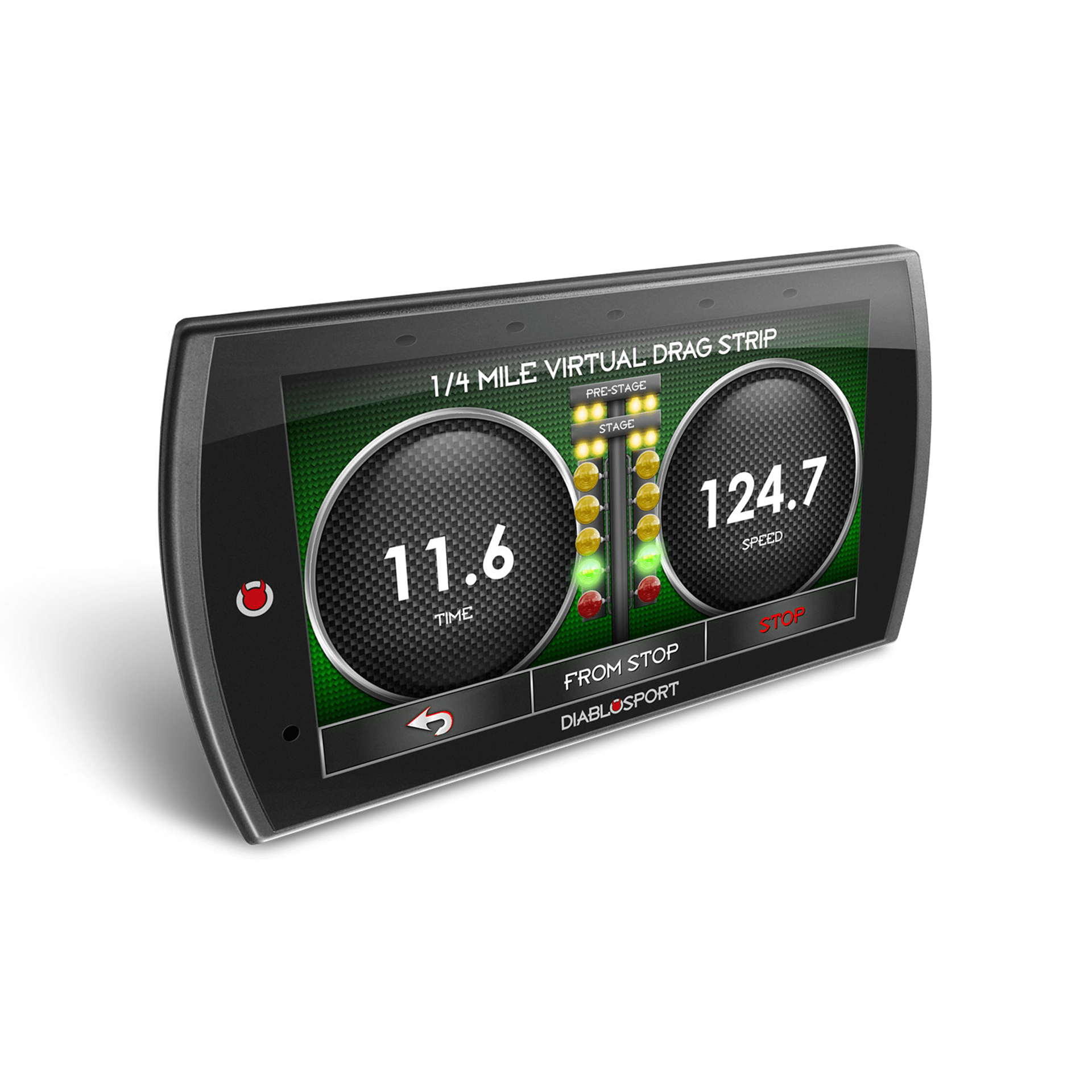

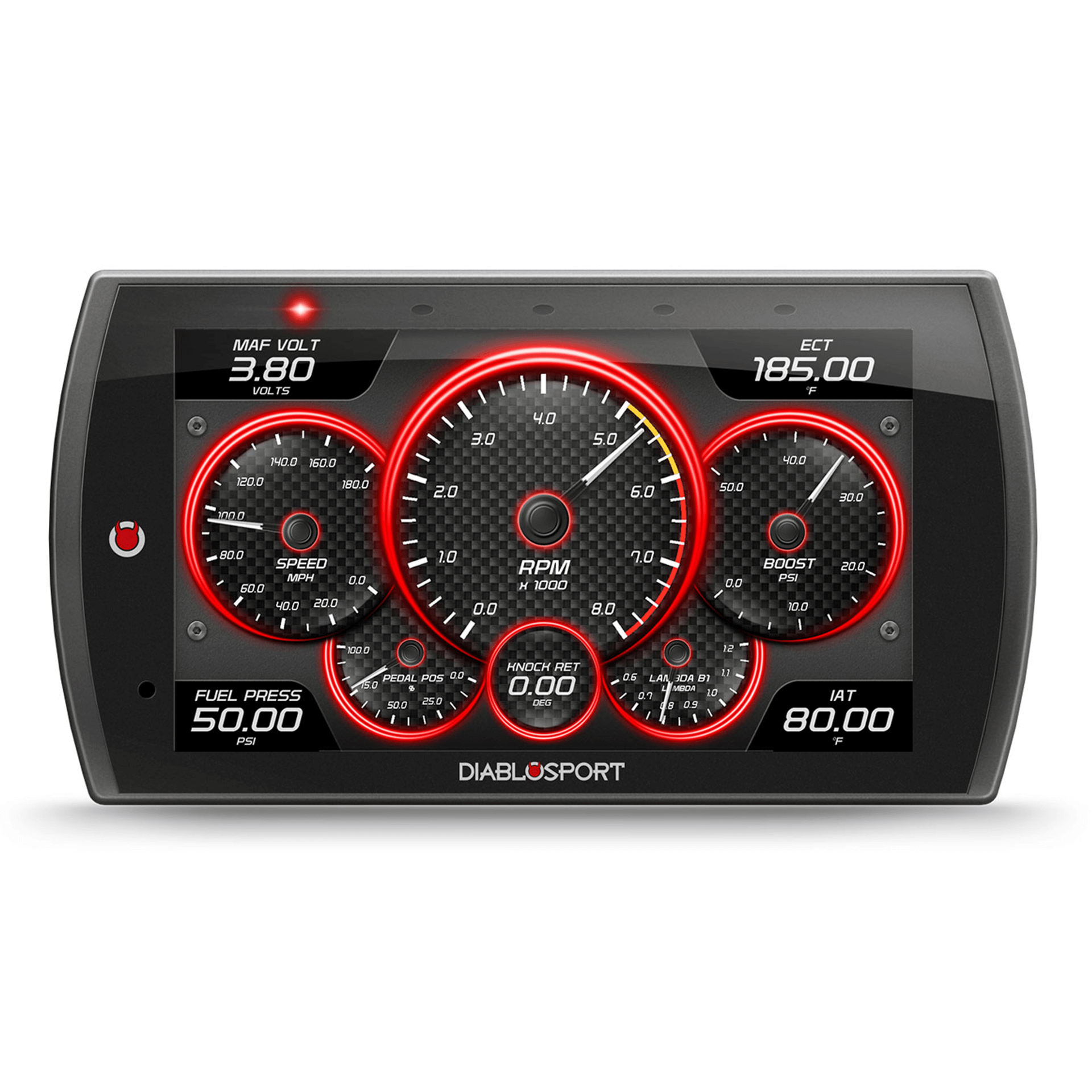

The Trinity T2 features a vibrant five-inch color touchscreen with swipe functionality, customizable gauge layouts, performance testing, and real-time monitoring of your truck's vitals

For Ram 1500 e Torque owners who want horsepower, torque, towing strength, and the flexibility of custom tuning, the Diablo Sport Trinity T2 Platinum PKIT is the ultimate upgrade

• 2021 Ram 1500 5.7 e Torque
• Add 25-30 rwhp over stock on premium fuel
• Adjust throttle response to your liking

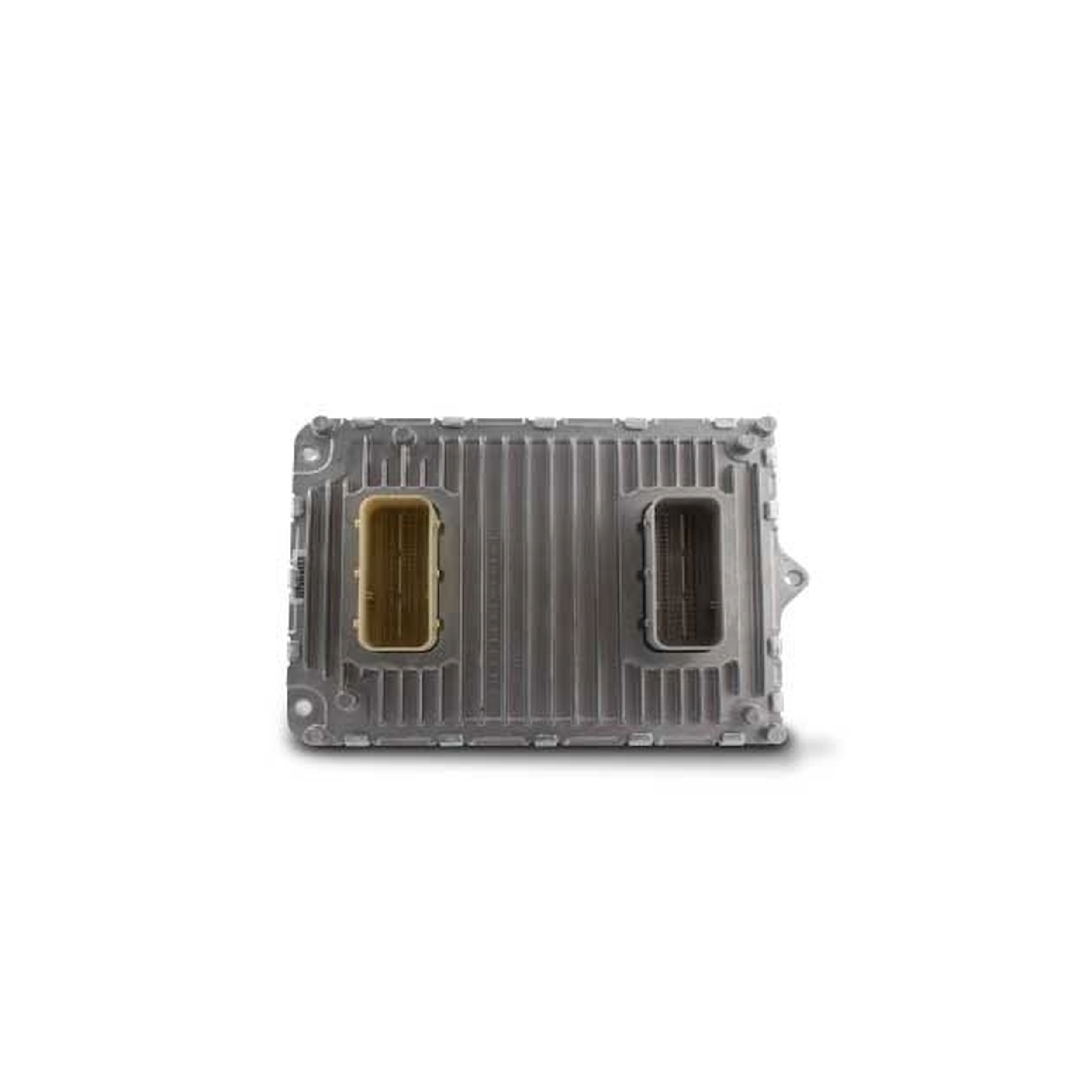

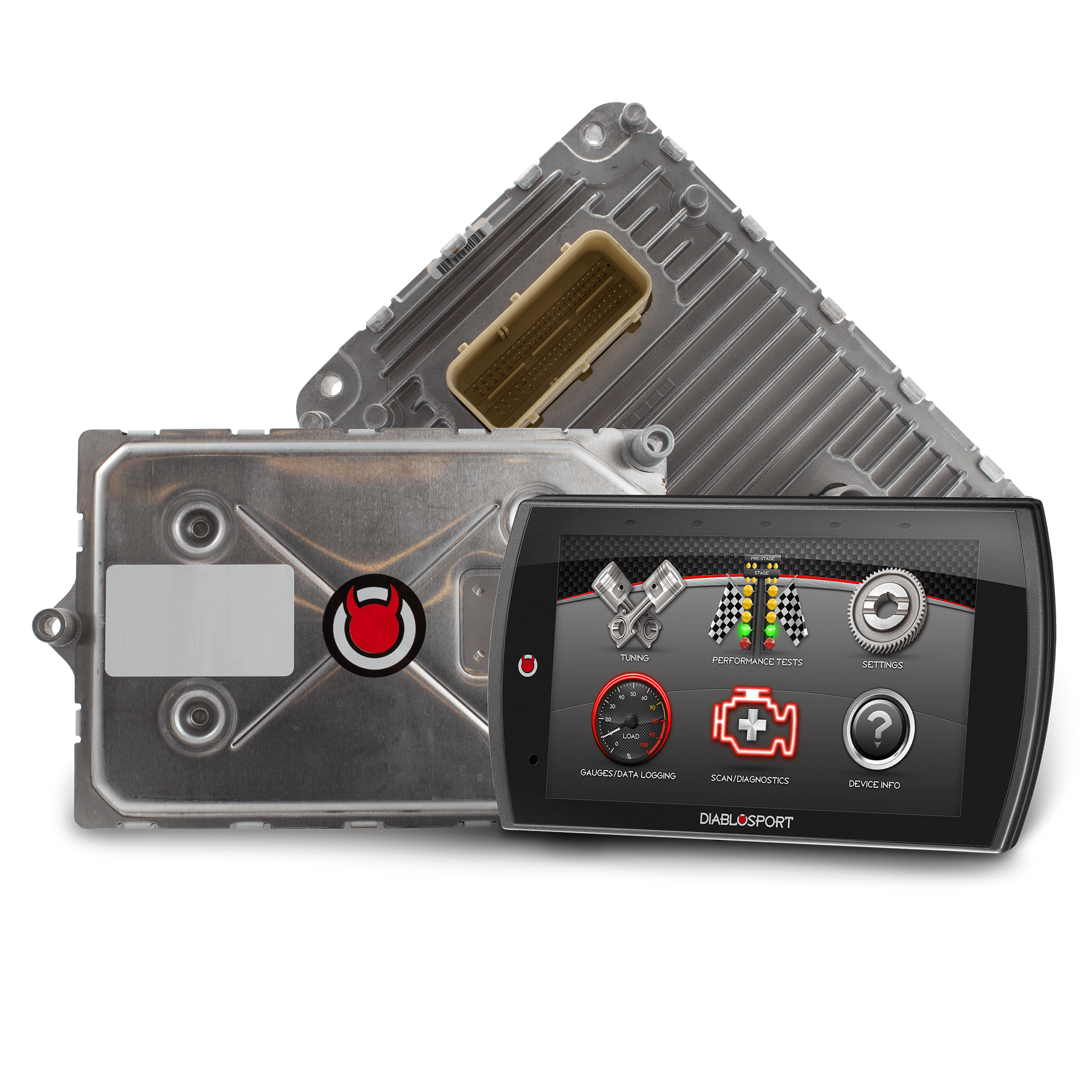

• Includes PCM programmed to your vehicle and Trinity 2
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• 5 Inch full color touch screen
• Read/clear DTC codes
• Customizable gauge layouts
• Disable MDS for full time V8 operation!
• Upload your own background images
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150 Degree-230 Degree for use with cooler t-stat

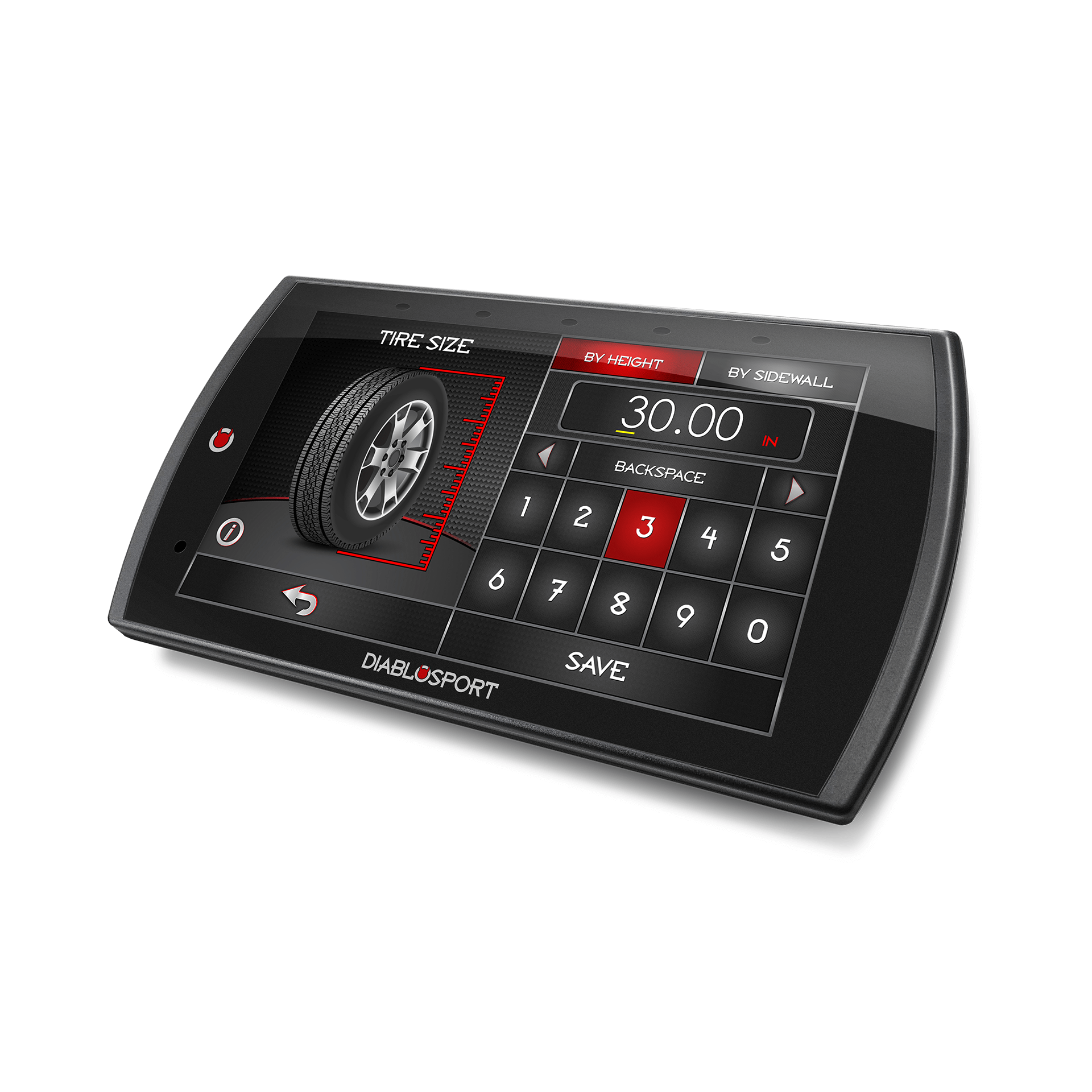

• Tire Size Adjustment 20 Inch-44 Inch, allows for correcting speedometer for different tires
• WOT Fuel Adjustment - 1-7K RPM +/- 20 percent, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark - 1-7k RPM +/- 10

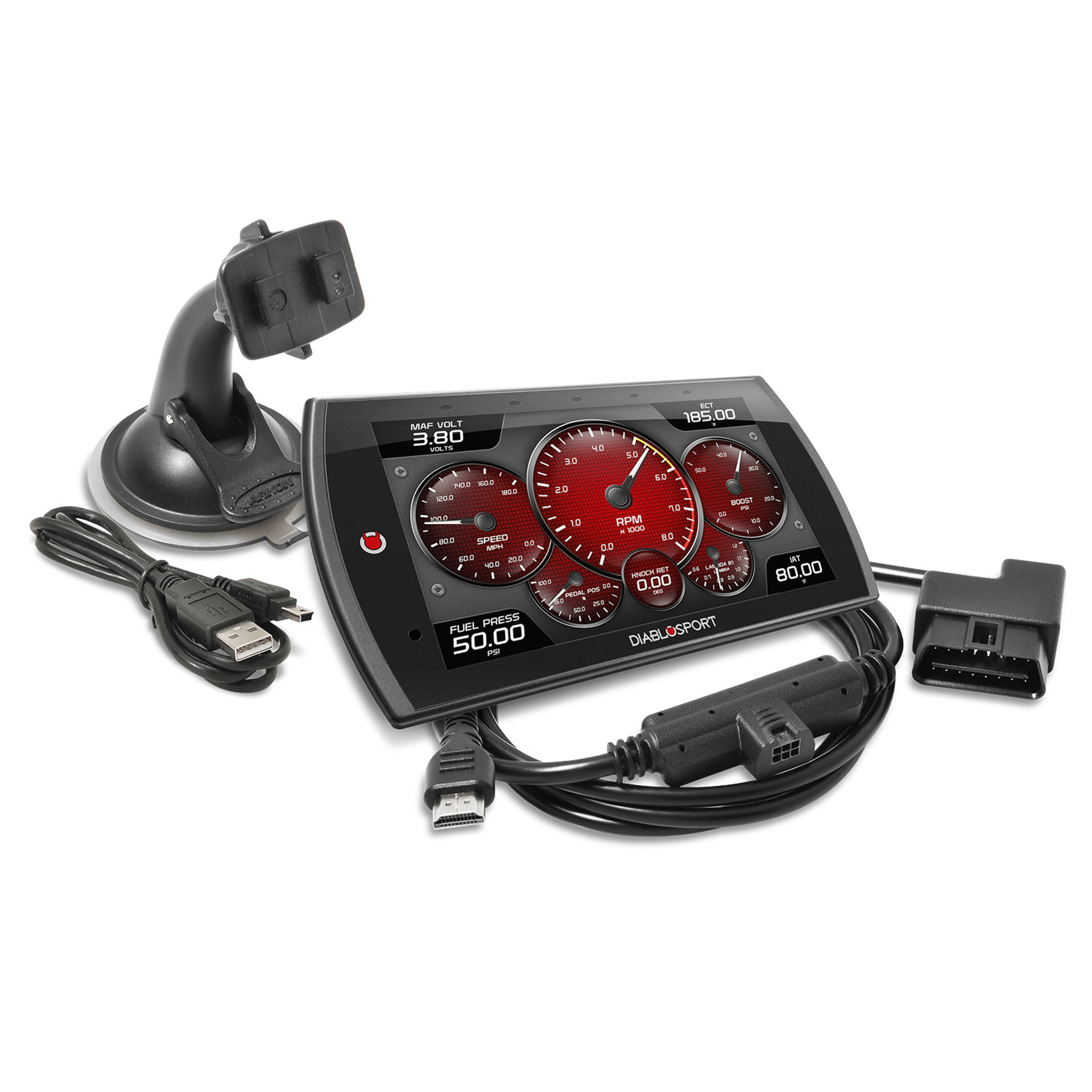

• Windshield mount included

Details:

• Fuel Type: Gas
• CARB (California) Compliant: No
• Body Material: ABS
• 5 Volt Data Logging Inputs: Yes
• 50 State Legal: No
• AC Adapter: No
• Accepts Custom Tunes From CMR: Yes
• Alerts and Records: Yes
• Auto Dimming Screen: Yes
• Case Included: No
• Color Touch Screen Display: Yes
• Custom Tuning: Yes
• Data Logging: Yes
• Emission Code: 7
• Erases Fault Code: Yes
• Grade Type: Performance Regular
• Instruction Manual Included: Yes
• Performance Tests: Yes
• Performance Tunes: Yes
• Personal Computer and Mac Compatible: Yes
• Pods and Mounts Available: Yes
• Product Type: Tuner/PCM Pkgs.
• Software Included: Yes
• Speedometer: Yes
• Sub Category: Engine Service
• Systems Covered: Transmission Engine
• Upgradable: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
