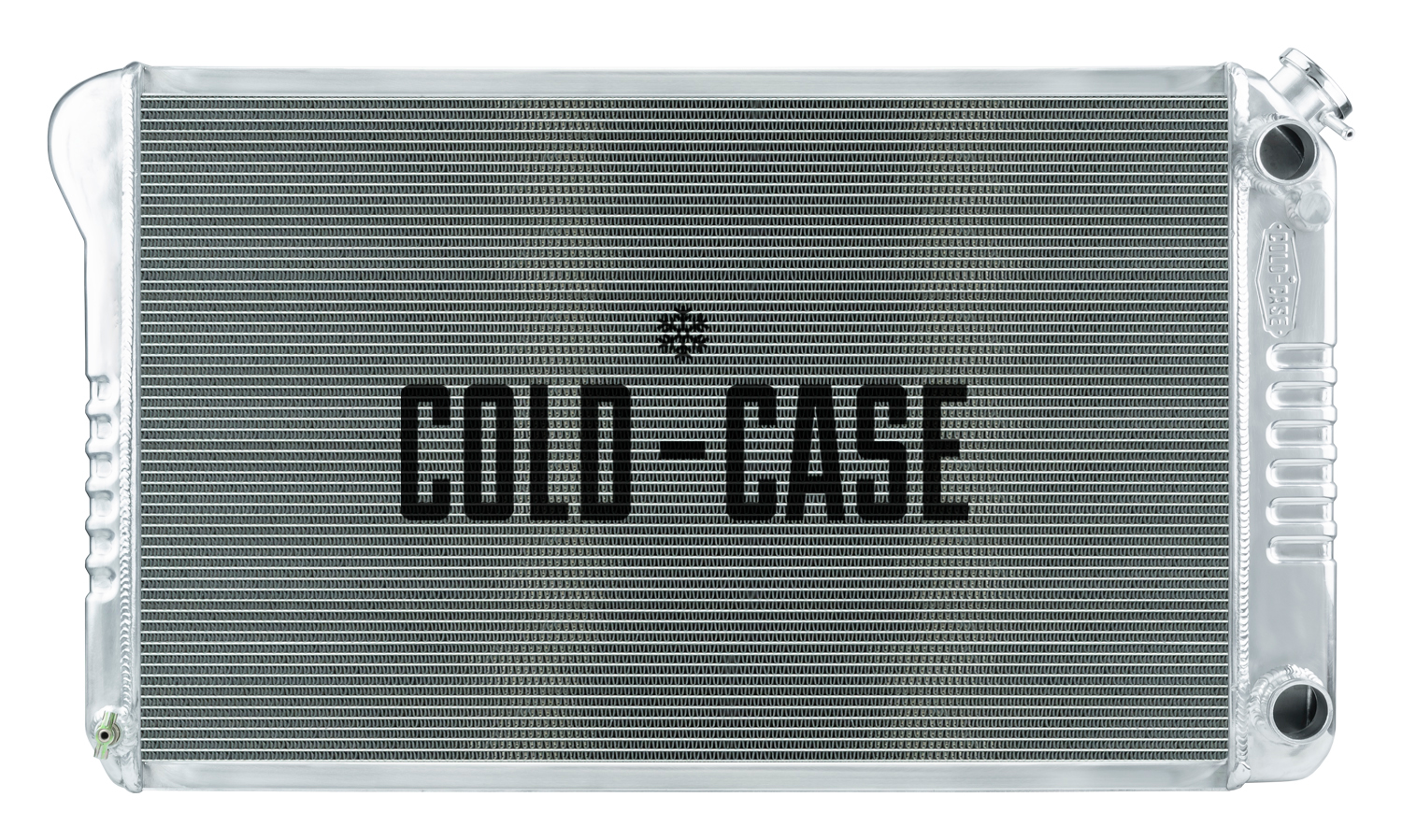

1970-1981 F-Body (LS SWAP) Aluminum Performance Radiator. MT or AT Cars. Meant to be used with an external trans cooler.

These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.
Features:

• 100 percent TIG welded
• All Aluminum
• 2 rows of 1.25 inch tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Direct fitment for 70-81 Camaro/Firebird/Trans Am with LS motors
• Old Part Number: RFE557A

Radiator Specs:

• Core Height 18.4 inch
• Core Width 27.5 inch
• Overall Height 19 inch
• Overall Width 33.2 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.57 inch
• Lower Hose 1.57 inch
• Material: Aluminum
• Finish: Polished

Details:

• Fits: 70-81 F-Body
• Engine: LS
• Fins Per Inch: 16
• Thickness: 3 Inch
• Overall Height: 19 Inch
• Overall Width: 33.2 Inch
• Upper Hose: 1.57 Inch
• Lower Hose: 1.57 Inch
• Transmission Type: Automatic/Manual
• Material: Aluminum
• Finish: Polished
• Warranty: Limited Lifetime Warranty
