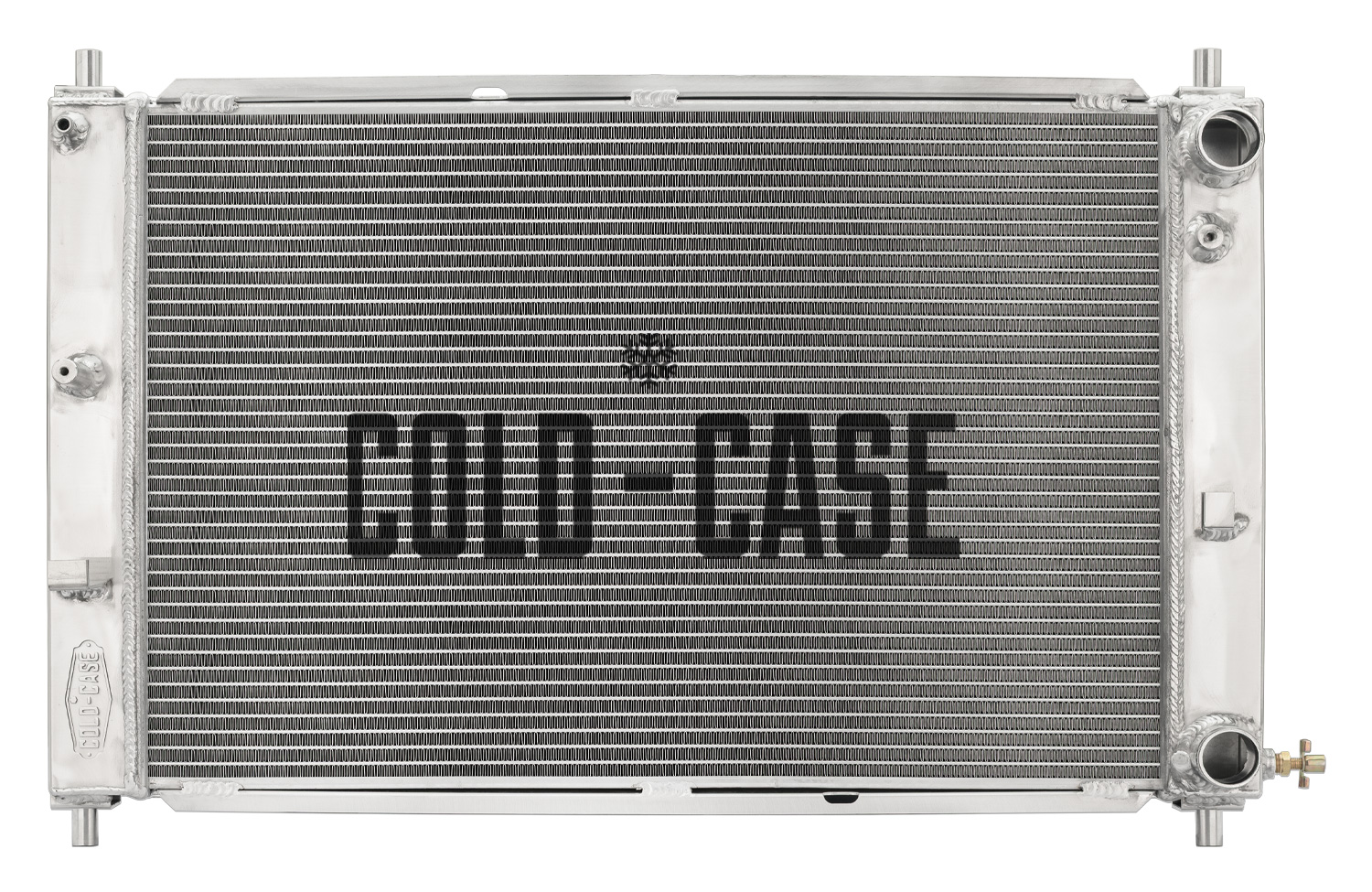

Upgrade your LS-swapped 1997-2004 Ford Mustang with a Cold-Case aluminum performance radiator engineered specifically for 1997-2004 Ford SN95 Mustang LS swap applications.

These Cold-Case radiators are 100 percent TIG welded aluminum and built to deliver outstanding cooling performance for modern LS engine conversions. Unlike many traditional 3-row and 4-row aluminum radiators, our oversized 2-row core design provides superior coolant flow and heat transfer while maintaining a direct-fit installation for your swap.

Features:

• Designed for 1997-2004 Ford Mustang LS swap applications
• 100 percent TIG welded aluminum construction
• All-aluminum radiator
• Oversized 2-row core design
• 16 fins per inch
• Corrugated fins for increased surface area and improved thermal transfer
• Pressure tested for reliability
• OE-style transmission cooler fittings
• Direct-fit design for LS-swapped 1997-2004 Mustangs
• For standard transmission or automatic transmission with separate cooler

Radiator Specs:

• Core Height: 16.85 Inch
• Core Width: 25 Inch
• Overall Height: 19.9 Inch (pin to pin)
• Overall Width: 28 Inch (Stud to Stud)
• Overall Thickness: 3 Inch
• Tubes: (2) 1 Inch Tubes
• Upper Hose: 1.5 Inch
• Lower Hose: 1.5 Inch

Important Fitment Note:

• Designed specifically for 1997-2004 Ford Mustang LS engine swap applications. Verify your engine swap components, hose routing, and cooling system configuration before ordering.

Details:

• Fits: 97-04 Mustang
• Engine: LS
• Fins Per Inch: 16
• Thickness: 3 Inch
• Overall Height: 19.9 Inch
• Overall Width: 28 Inch
• Upper Hose: 1.5 Inch
• Lower Hose: 1.5 Inch
• Transmission Type: Automatic/Manual
• Material: Aluminum
• Finish: Polished
• Warranty: Limited Lifetime Warranty
