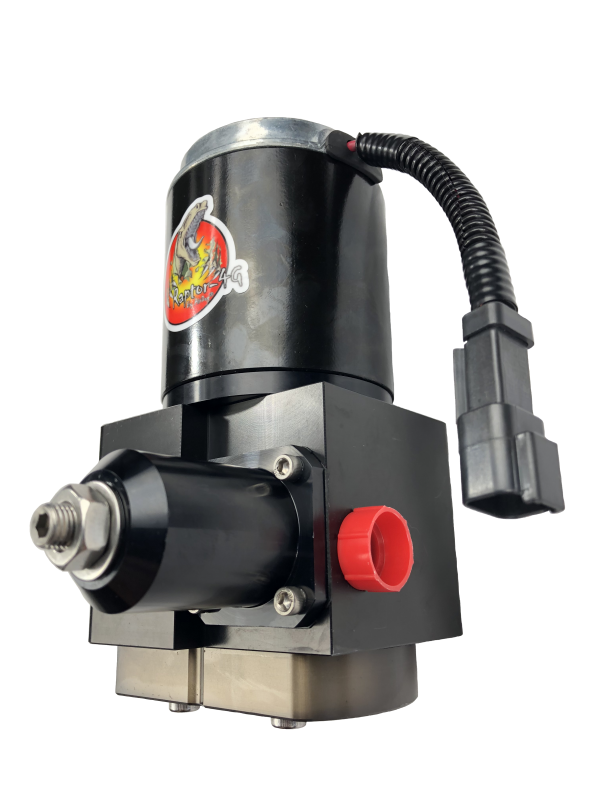

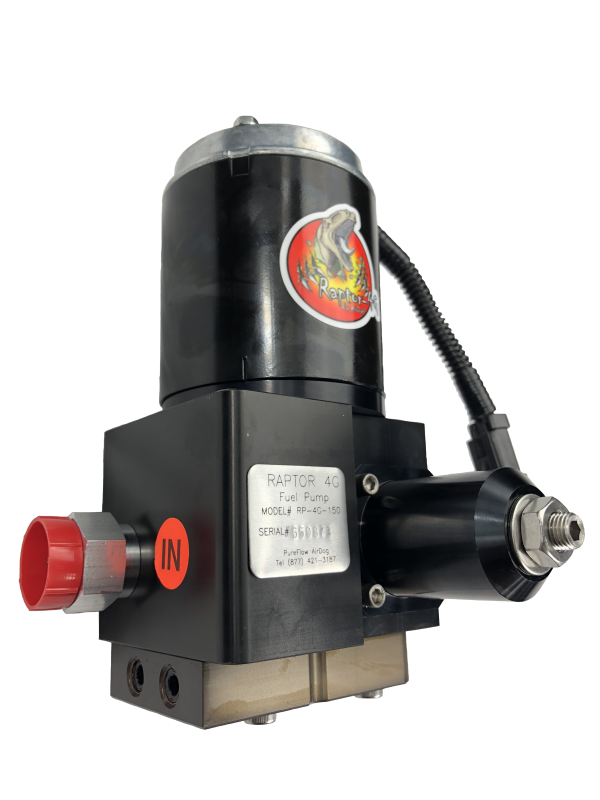

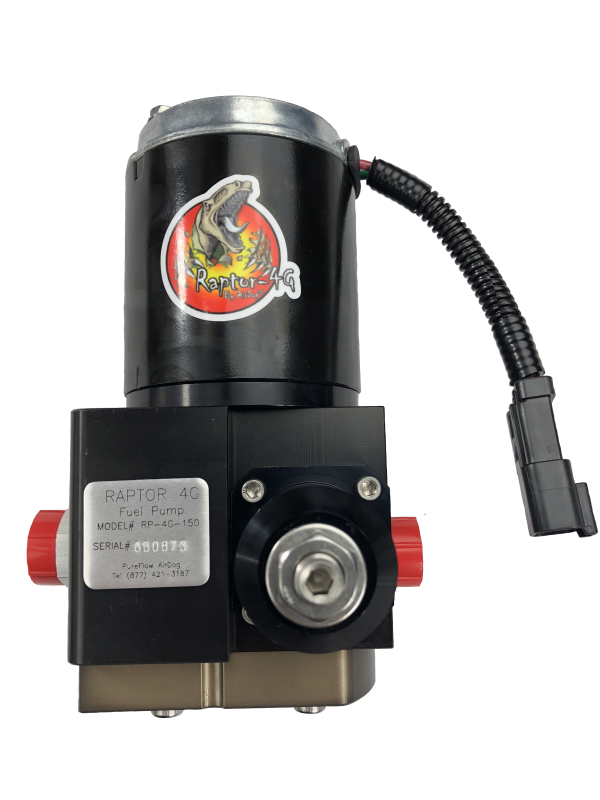

This is the Raptor-4G RP-150 fuel system for the 2004.5-2018 Common Rail Cummins. This system mounts to the frame rail using the supplied sandwich plate mounting system.

A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.

The pressure side connects directly into the side of the fuel filter housing on the engine block. These pumps are internally regulated and do not require a return line.

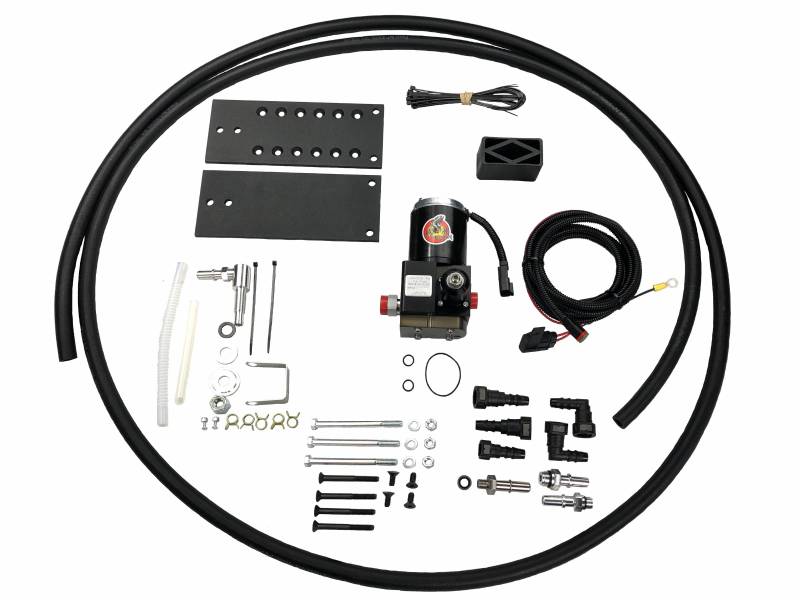

This is a 150GPH (Gallon Per Hour) fuel system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 150GPH
• Manufacturer: Cummins
• Make: Dodge
• Liter: 6.7L
• Valve: 24V
• Engine Years: 2004.5-2018
• Fuel Type: Diesel
