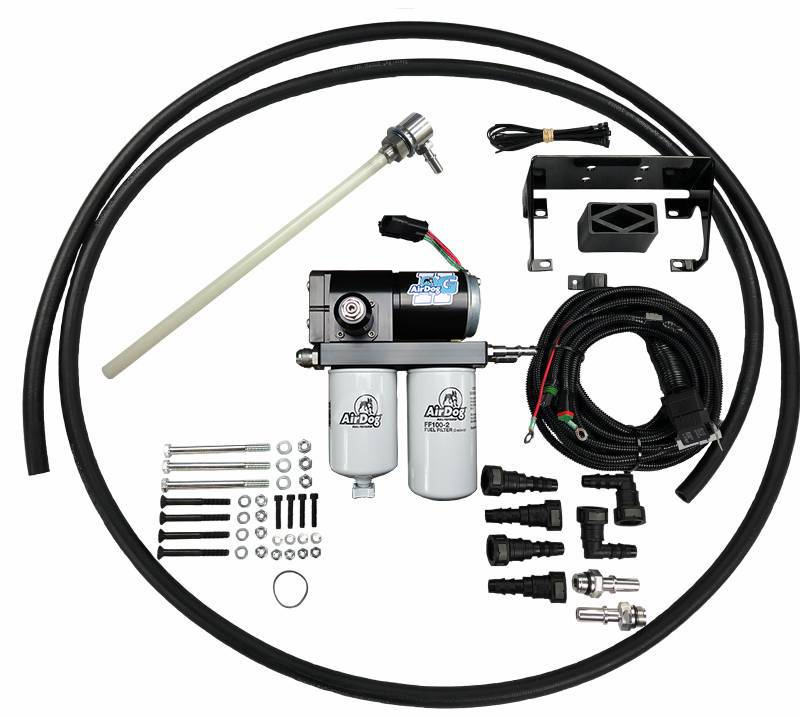

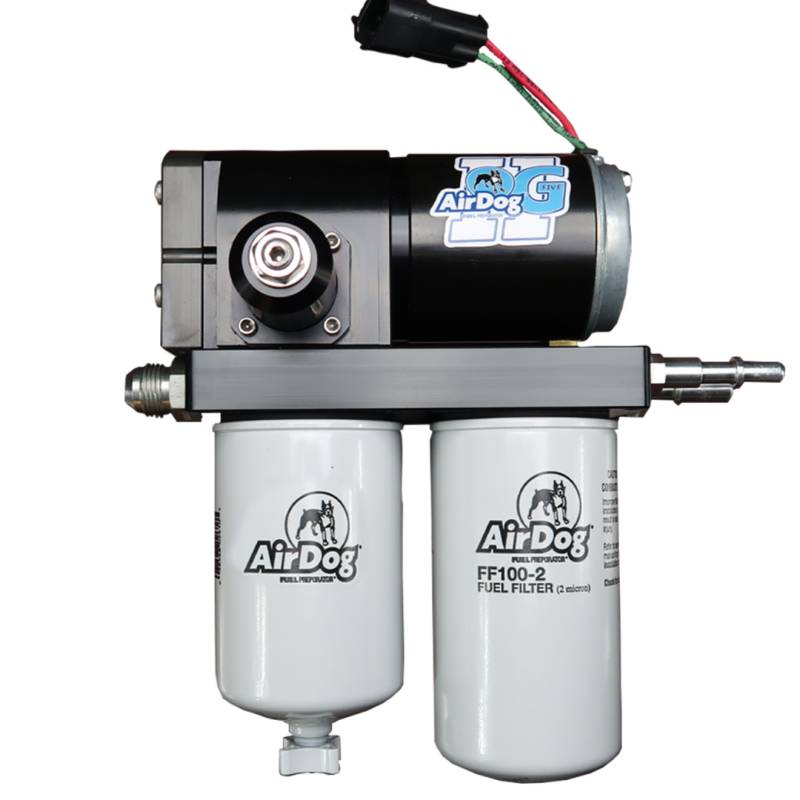

This is the AirDog II-5G DF-220-5G fuel system for the 2011-2014 Chevy Duramax. This diesel lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket.

A 5/8in draw straw is installed in the fuel tank to draw fuel to the pump. The pressure side connects directly to the factory 1/2in fuel line on the frame.

The AirDog Air/Vapor return is sent back to the tank through the factory 12mm" suction line once the module is modified. This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks (1000 HP and above).

Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 220GPH
• Manufacturer: Duramax
• Make: GM/Chevy
• Liter: 6.6L
• Engine Version: LML
• Engine Years: 2011-2016
• Fuel Type: Diesel
