Description

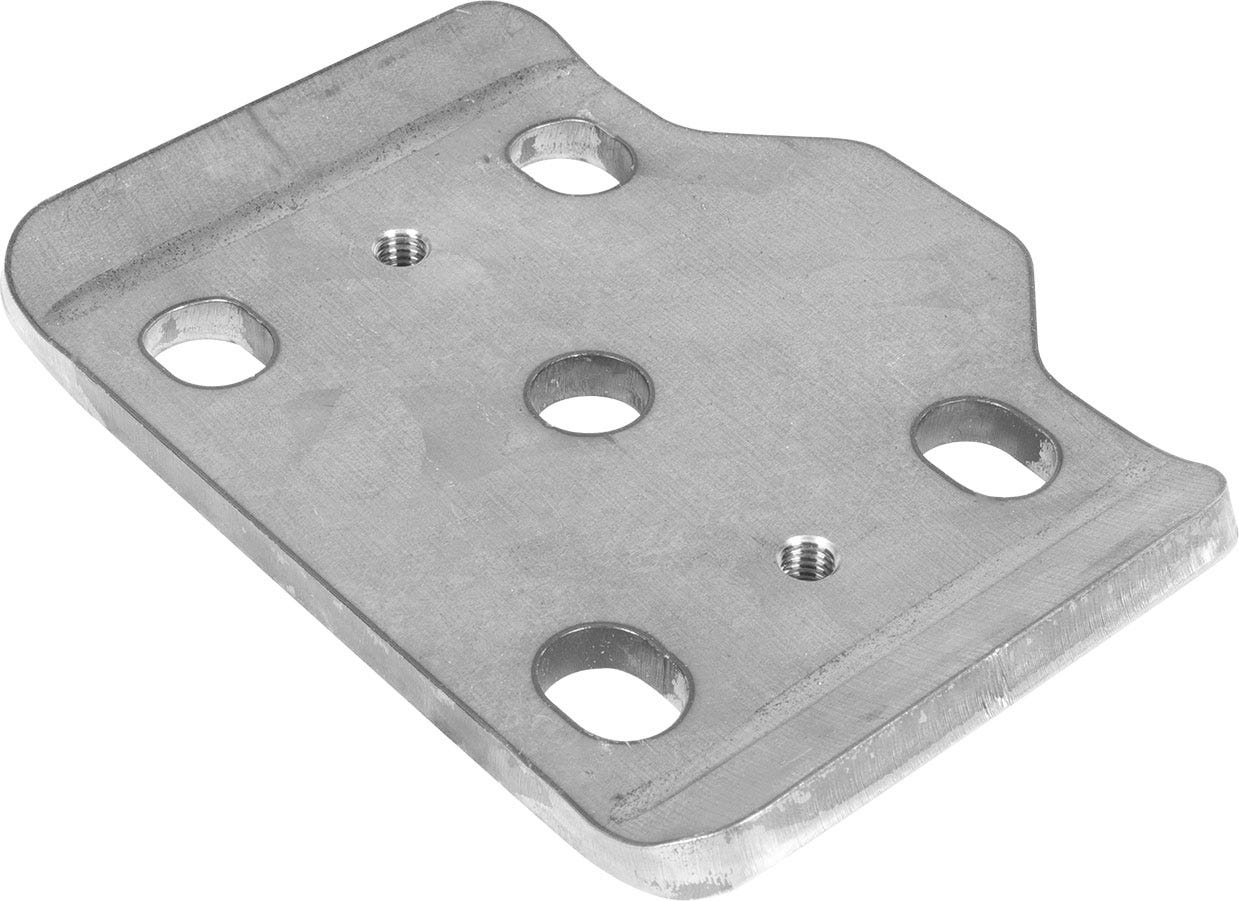

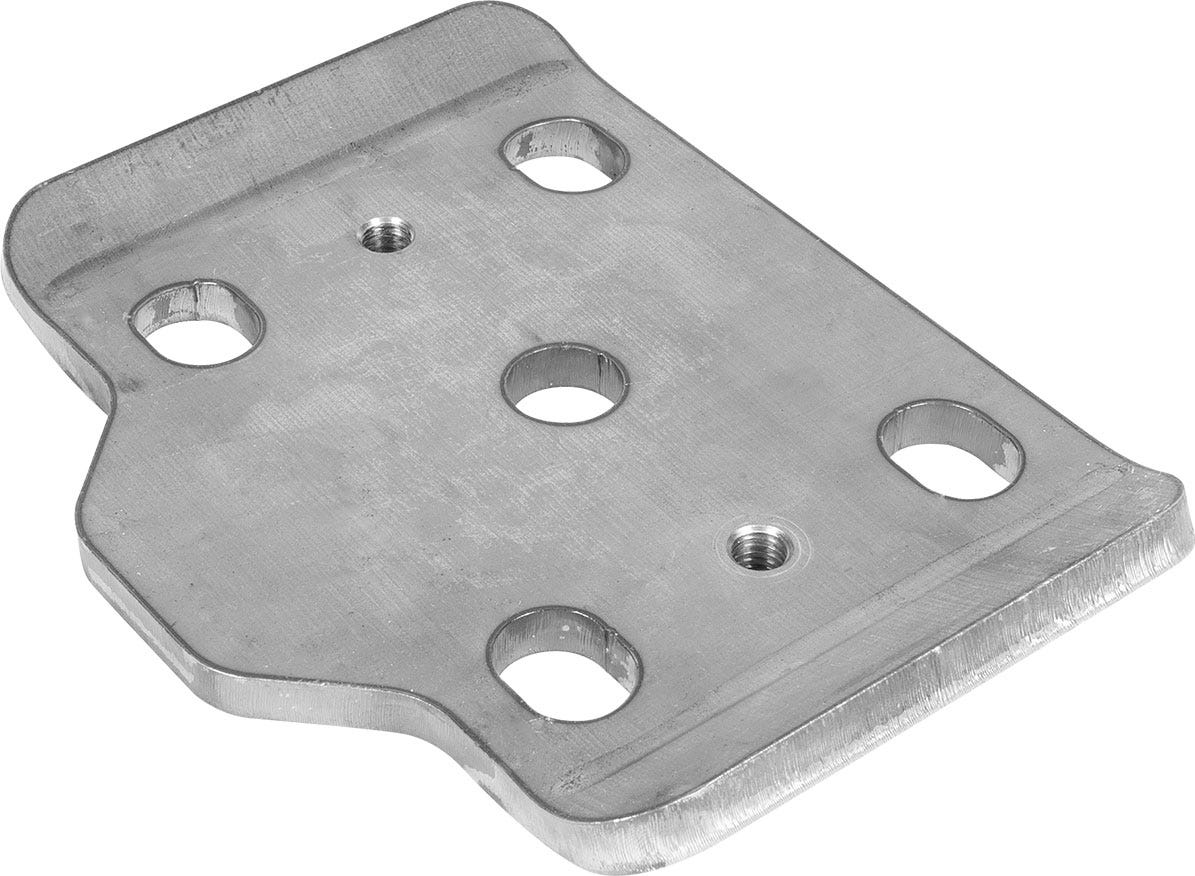

This U-bolt flip kit is designed for use with 3.5 inch OD Trail-Gear axle housings and can also be used on other 3.5 inch OD axle tubes. Flip kits provide increased rear ground clearance and protection of your U-bolt threads. The plates are drilled and tapped for mounting a cushion type bump stop, and they have a kick-out for use with a frame-mounted hydraulic or air bump system to contact.
This complete kit includes a full set of 9/16 inch U-bolts and can be used with leaf springs up to 2.5 inch wide. U-bolts are 10 1/2 inch long which accommodate thick spring packs such as All-Pro's Expedition springs.
Features:
- 3/8 inch Steel U-bolt plates
- Threaded holes for mounting bump stops on U-bolt plates
- U-bolt plates ship raw/unpainted
- U-bolts ship with clear zinc plating
