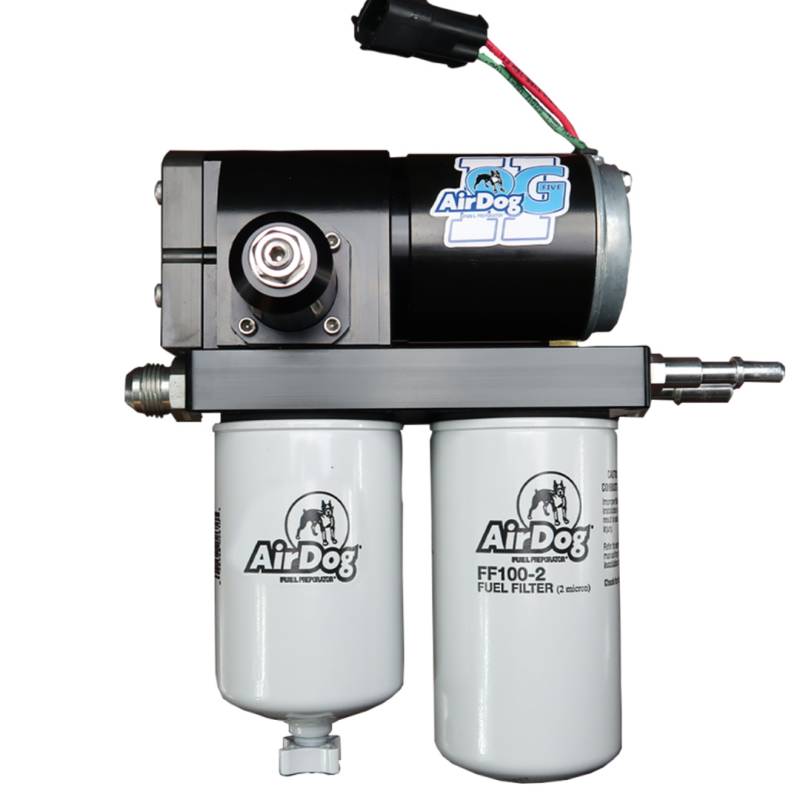

This is the AirDog II-5G DF-165-5G fuel system for the 2011-2016 Ford 6.7L Powerstroke. This replaces the factory frame rail fuel pump.

This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction line on the frame rail.

The pressure side connects to the factory feed line to the injection pump. The AirDog Air/Vapor return is sent back to the tank through a return y that ties the AirDog return to the factory engine return.

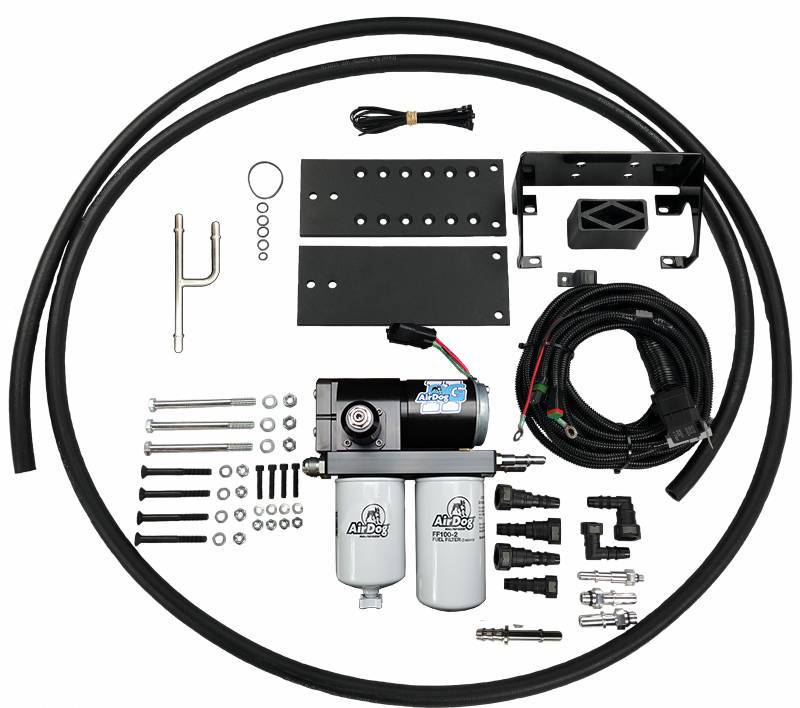

This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 165GPH
• Manufacturer: Powerstroke
• Make: Ford
• Liter: 6.7L
• Engine Years: 2011-2016
• Fuel Type: Diesel
