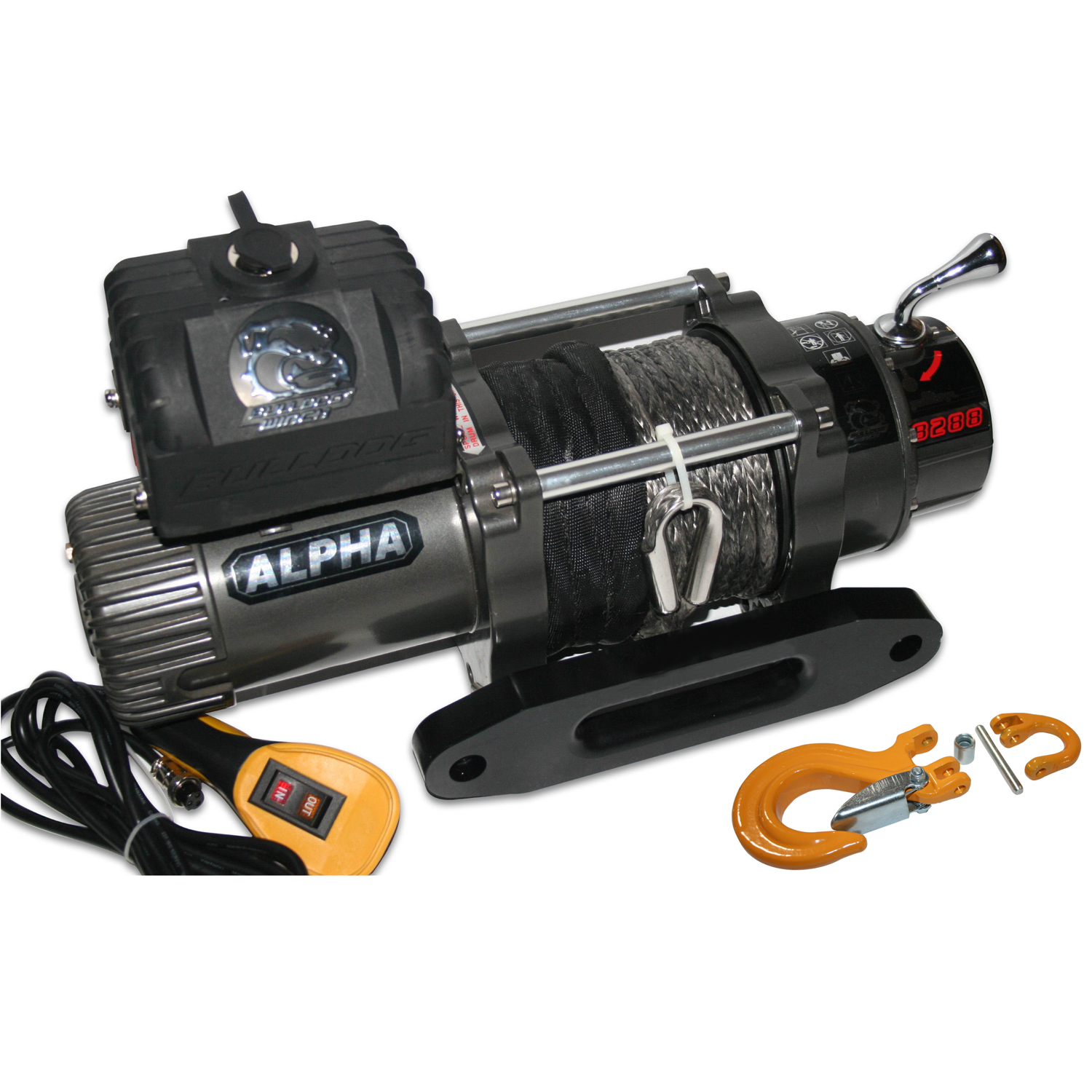

8288 Comp Winch W/75 Ft Synthetic Rope Bulldog Winch
SKU
10009-FMJR
List price
$1,489.78
Price
$1,216.99
Description
8288 Comp Winch W/75 Ft Synthetic Rope from Bulldog Winch. This is from our Standard Series and includes 87 feet of wire rope. This is the winch our Professional Race Teams are using! High speed 55ft/min no load line speed, Short drum with 75ft of Premium Synthetic Rope. CNC machined aluminum hawse fairlead.
Details:
- 75 Foot Wire Rope
- Thermal Limiter: Motor Overheat Protection w/LED Feedback Light and Auto Reconnect
- Motor: 6.8HP Series Wound
- Switch: 500A Sealed Contractor
- Controller: Hand Control w/12 Foot Lead Included
- Power unit: Remote Mountable
- Battery Leads: 6 foot w/High Heat-Abrasion Resistant Sheathing
- Gear Train: 3-Stage Planetary
- Gear Ratio: 138:1
- Gear Box: Clockable to Rotate Shifter
- Clutch: Freespooling Sliding Ring Gear
- Brake: Automatic Load Hold in Drum
- Drum 3 X 5.3 inch (76 X 135mm)
- Overall Dimensions: 19.8 inch L x 6.5 inch W X 7.25 inchH w/o Power Unit
- Mounting Bolt Pattern: 6.5 x 4.5 inch
- Warranty: Limited Lifetime
- Battery Recommendation: 650CCA
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Video
Specs
Brand
Bulldog Winch
Category
Winch & Recovery
Winches
Specs
Sold As: Each
UPC: 878850002587
Availability: Available
Universal: Yes
Battery Recommendation: 650 CCA
Brake Type: Automatic Load Hold in Drum
Clutch Type: Freespooling Sliding Ring Gear
Drum Diameter: 3 x 5.3 inch
Gear Box: Clockable to Rotate Shifter
Gear Ratio: 138:1
Gear Train: 3-Stage Planetary
Mfg Label: Winch
Overall Dimensions: 19.8 inchL x 6.5 inchW X 7.25 inchH w/o Power Unit
Power Unit: Remote Mountable
Rope Type: Synthetic
Switch Type: 500A Sealed Contractor
Thermal Limiter: Motor Overheat Protection w/LED Feedback Light & Auto Reconnect
Winch Motor: 6.8HP Series Wound
Series
Comp
Vehicle Type
Jeep
Bolt_pattern
6.5 inch x 4.5 inch
