Take command of your electronic devices with Rough Country's MLC-6 Multiple Light Controller for Jeep Wrangler JKs. This easy and reliable electrical upgrade allows you to control six auxiliary LED lights or electrical devices with the push of a button.

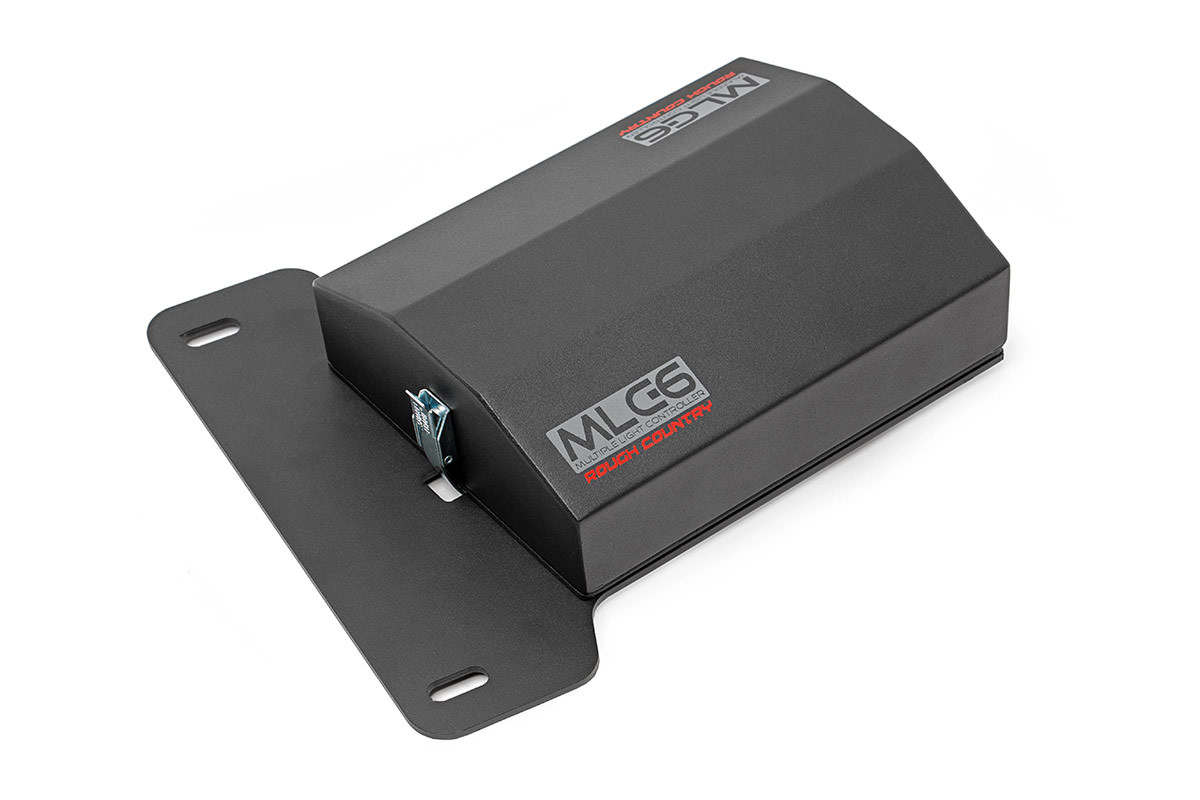

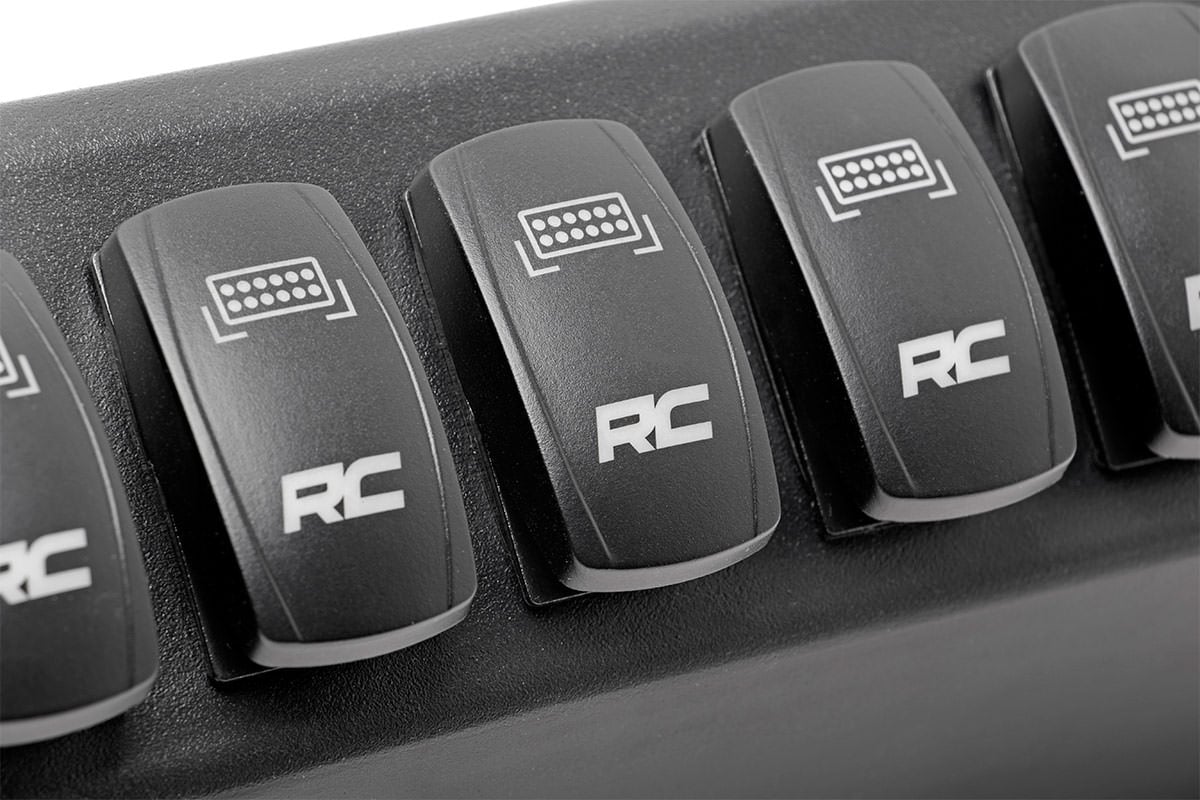

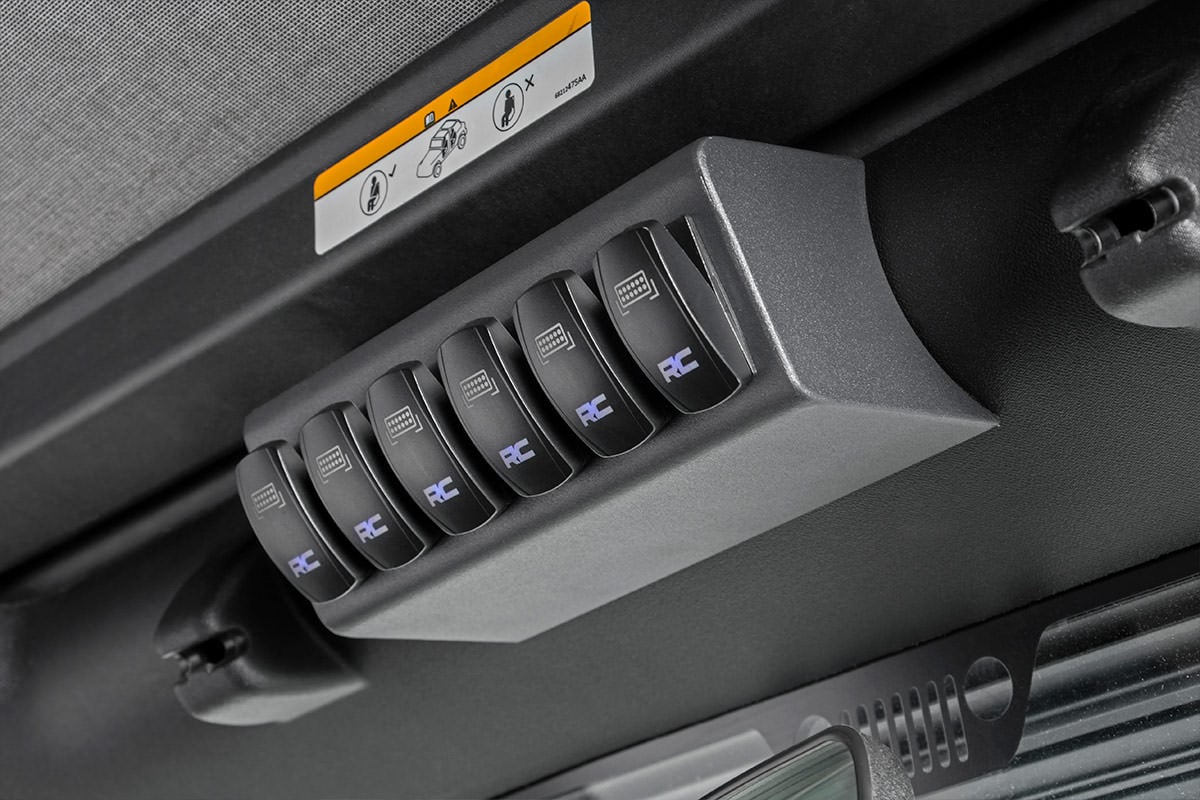

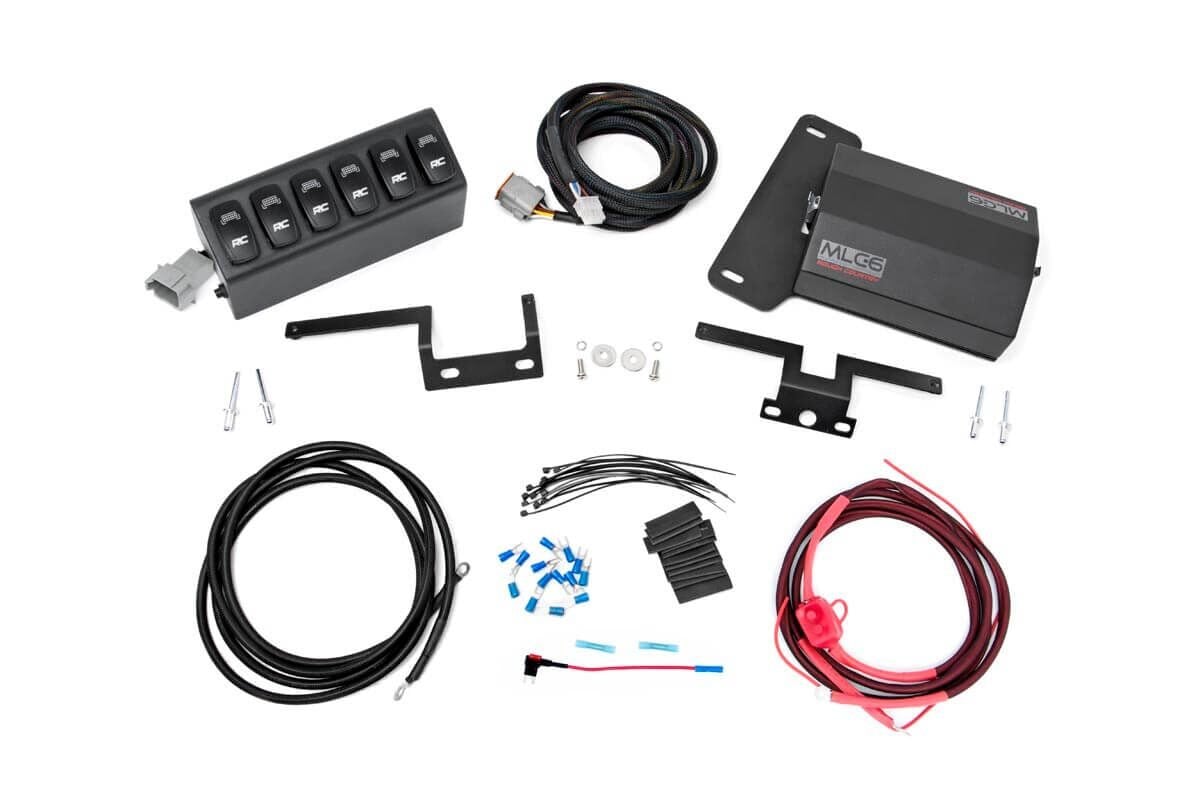

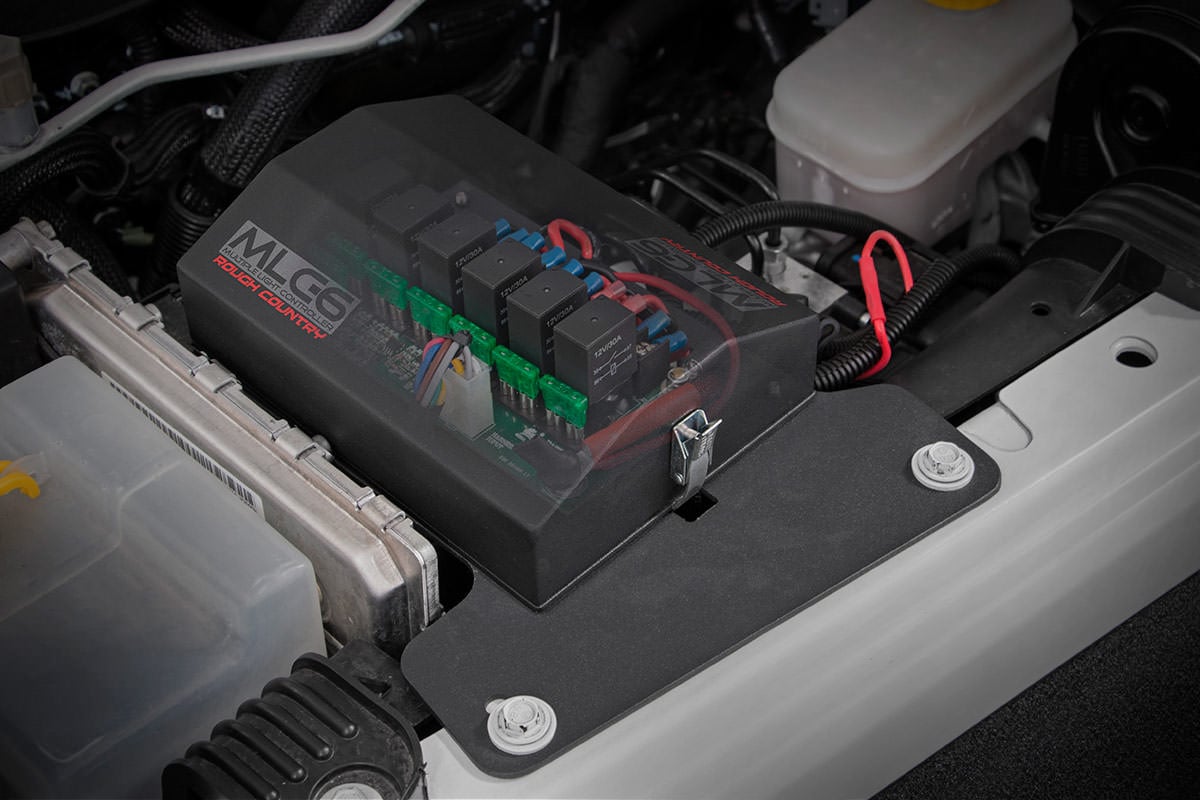

Each kit features a power distribution block, 6-row switch hub, mounting hardware, and high-temperature, abrasion resistant wiring cables. Rough Country's MLC-6 is a professional quality power distribution system and switchboard for 07-16 Jeep JK models, allowing you to add professional control for your electronic devices in an easy-to-install system that doesn't gut your dashboard or force you to splice into factory wiring.

This plug-and-play system uses an in-line fused relay allowing you to safely connect up to 6 devices to one of the 6 interior switches with no mess and no fuss. The MLC-6 Power Distribution Block features an integrated LVCO (Low-Voltage Cut-Off) Circuit that detects battery voltage and will cut-off each accessory when the battery falls below operating voltage, ensuring you always have enough power to turn over your engine.

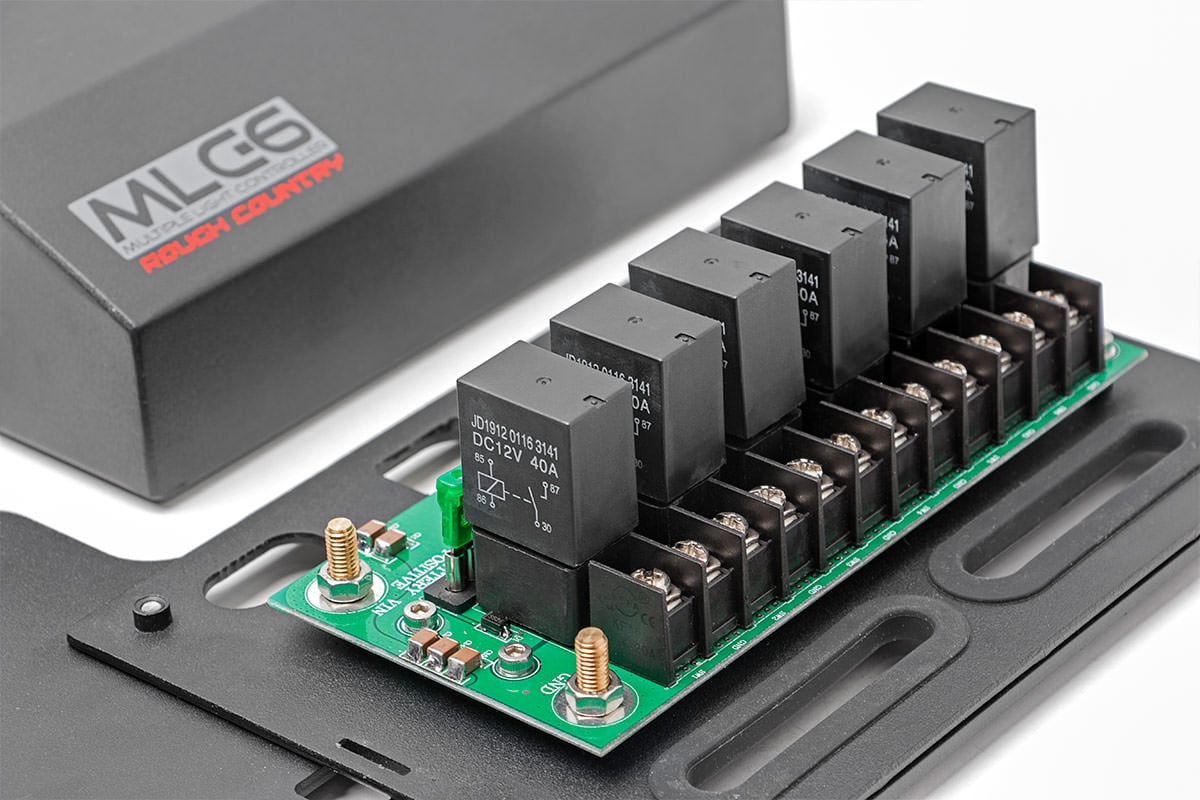

This distribution system also features a 12-position terminal block for hooking up accessories, six plug-in style 40-amp cube relays, and 6 ATO style 30-amp automotive fuses for superior power and protection. Includes a 1-year mechanical warranty and 1-year electrical warranty!

Features:

• 12 position terminal block for accessory attachment
• 6 40-amp cube style relays (plug-in style)
• 6 Diodes to prevent LED field collapse
• 6 30-amp ATO style automotive fuses
• Inline 50amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• Integrated LVCO (Low-Voltage-Cut-Off) circuit
• On/Off Button to disable switch LED backlighting
• All Required mounting brackets and hardware for Jeep Wranglers
• High-temp, abrasion resistant wiring cables

Notes: Does Not work with 4cyl engine models

Details:

• Sold As Each
• Location Interior
• Doors 2 Door|4 Door
• Drive 2WD|4WD
• Wire Type 8 Gauge
