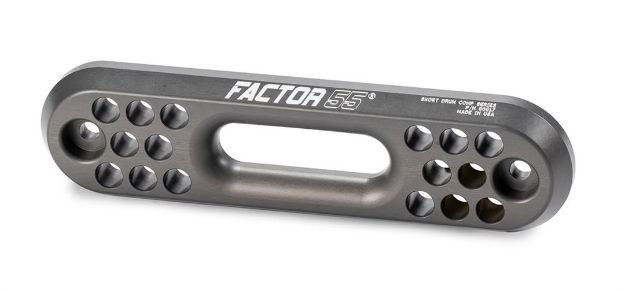

The Short Drum Comp Fairlead is used by the top competitors in the ULTRA4 Racing circuit and by professional rock crawlers around the world. This 1.0 Inch thick fairlead is CNC machined from 1 Inch thick USA 6000 series aluminum bar and is ultra lightweight from having maximum material removed and yet extremely rigid to handle front end impacts.. The industry standard fairlead thickness is.75 Inch thick.

The thicker, Factor 55 aluminum bar results in a larger outer fillet radius for the synthetic rope to slide against. This results in less stress on the rope fibers during high angular pulls, increasing the life of your expensive synthetic rope. The Short Drum Comp Fairlead is the industry's first Hawse fairlead compatible with the larger ? inch diameter rope tube thimbles.

The rope slot height opening is taller to allow the larger ? inch thimbles to pass through. There is also a machined outer corner chamfer to reduce rope stress for those that plan on using the winch as a front suspension suck down device. These fairleads come in a durable MIL-A8625F Type III gun metal gray hard anodized finish with a machined logo.

Features and Benefits:

• Durable MIL-A-8625F Type III gun metal gray hard anodized finish to resist the abrasion damage from a dirty/gritty synthetic winch rope rubbing across it
• Large fillet radius and machined outer corner chamfer to reduce stress and extend the life of synthetic rope
• Fairleads Do Not come with mounting hardware
• Standard 10 Inch Bolt Mount Spacing
• Overall Dimension: 12.35 Inch x 3.25 Inch
• Made in the USA

Details:

• Color: Gray
• Finish: Hard Anodized
• Material: 6061 Aluminum
• Thickness: 1.0 Inch

Notes:

• For use with short drum (less than 6 Inch) winches
• For synthetic winch rope only
• Always confirm that the synthetic rope cannot make contact to any sharp edges like the opening in the steel fairlead mounting plate or bumper opening. In some cases it may be required to grind this slot larger. Always sand and deburr this opening after any grinding operation.
