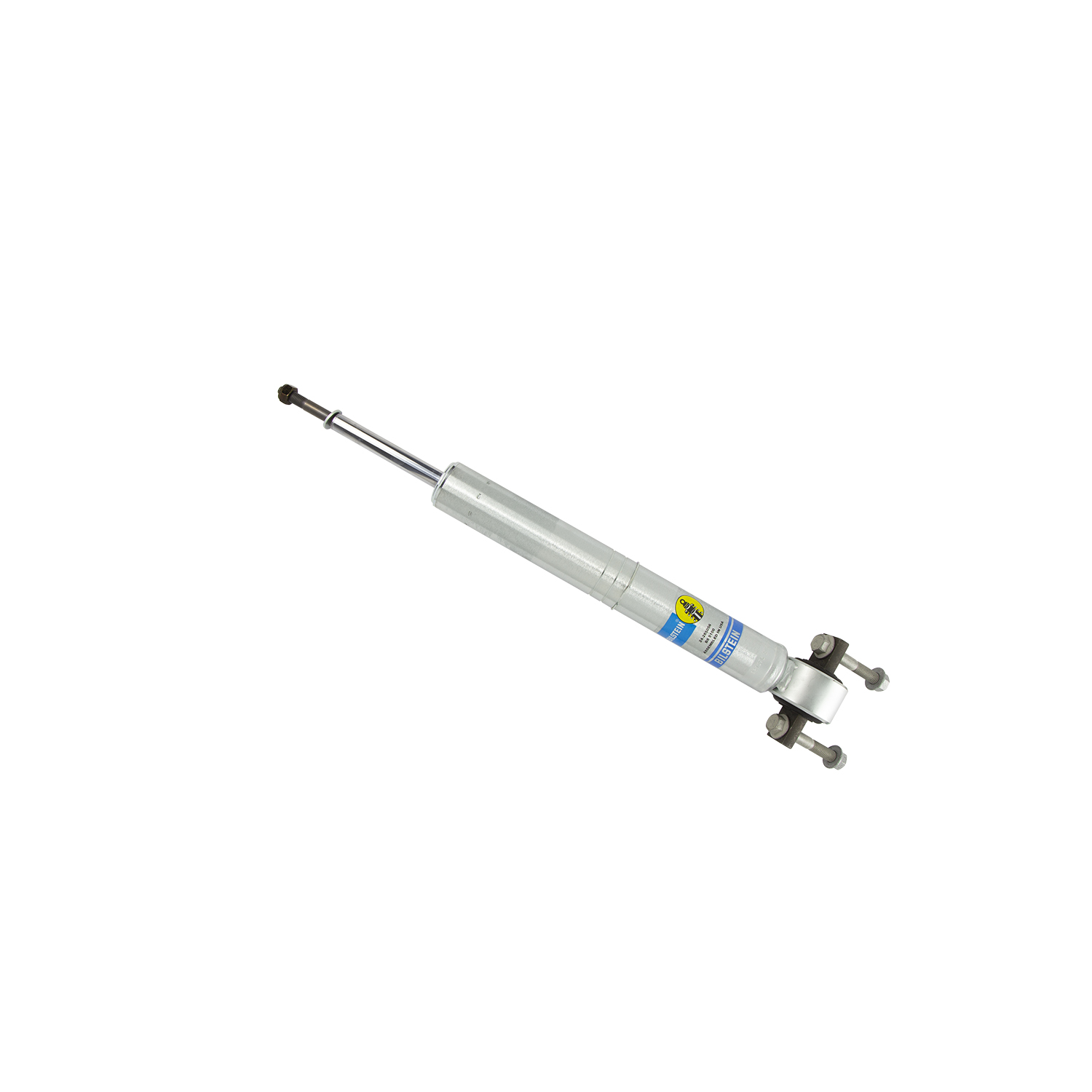

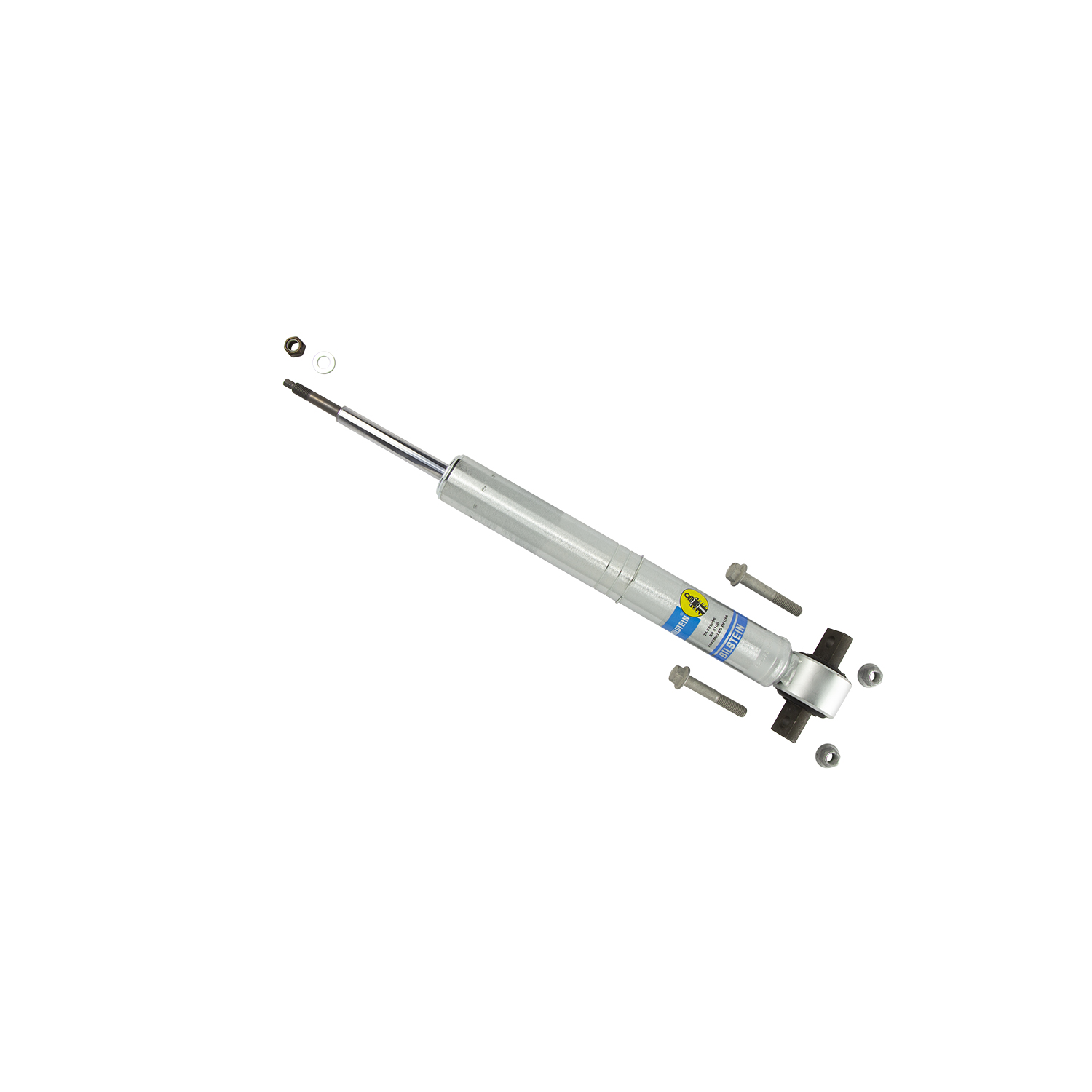

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).

• The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.

Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Details:

• Series: B8 5100 (Ride Height Adjustable)
• Internal Design:Monotube
• Lift Height: 0-1.6 Inch
• Lower Mount Type: Crossbar
• Upper Mount Type: Stem
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Collapsed Length Inch: 16.1
• Extended Length Inch: 20.95
• Boot Included:No
• Pistion Diameter: 46mm
• Postion: Front
• Reservior: No
• Shaft Diameter: 18mm
• Stroke Travel Length In: 4.85
• Stroke Travel Length In: 123.2
• Interchange: JL1Z 18124-E, JL1Z 18124-F, JL1Z 18124-G, JL1Z 18124-U, JL1Z 18124-V, JL1Z 18124-W, NL1Z 18124-R
• Notes: Front Lift Height 0-1. 6 Inch
• Applications: Ford Expedition 2025-2014, Lincoln Navigator 2015-2014, Navigator 2019-2017
• Warranty: Limited Lifetime Warranty
