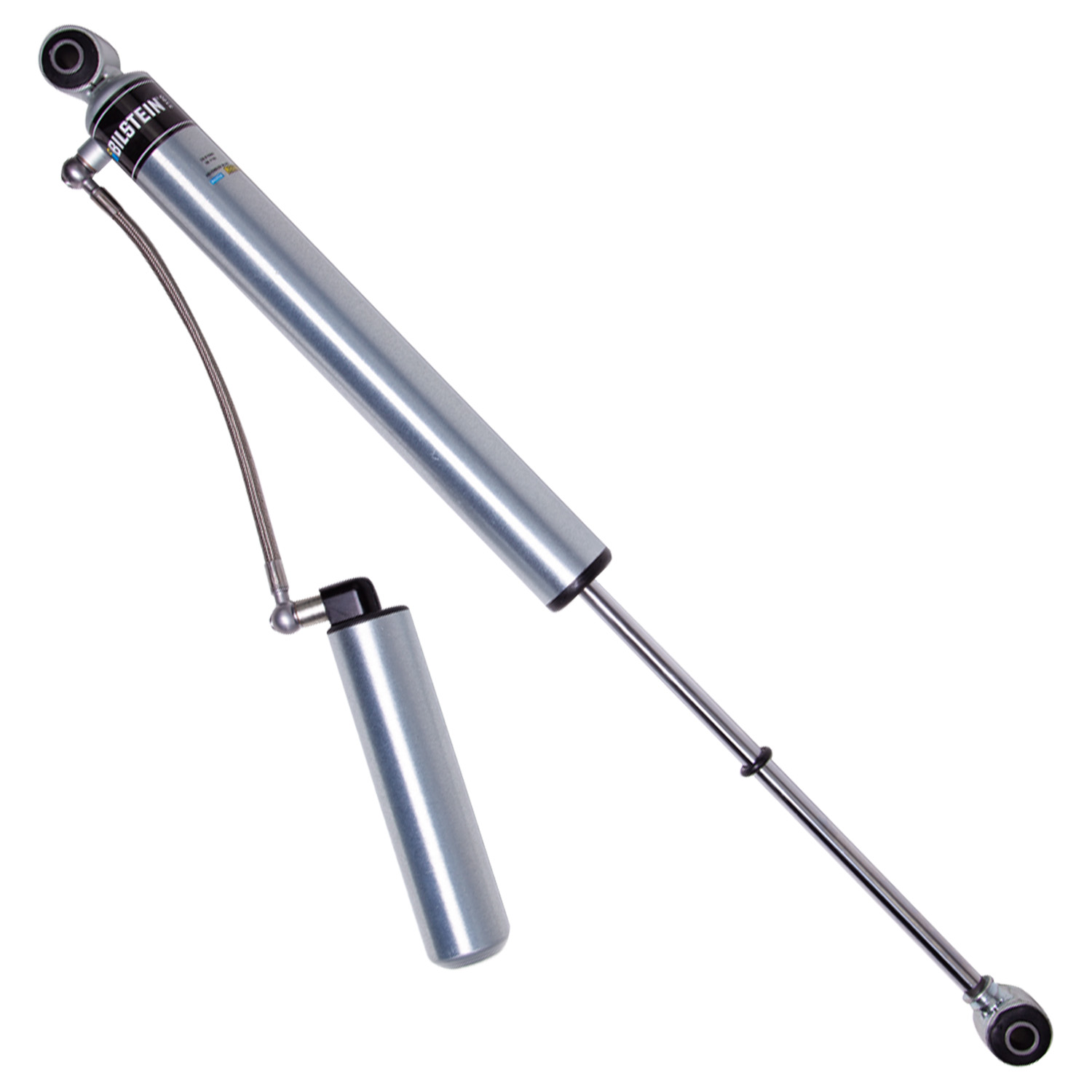

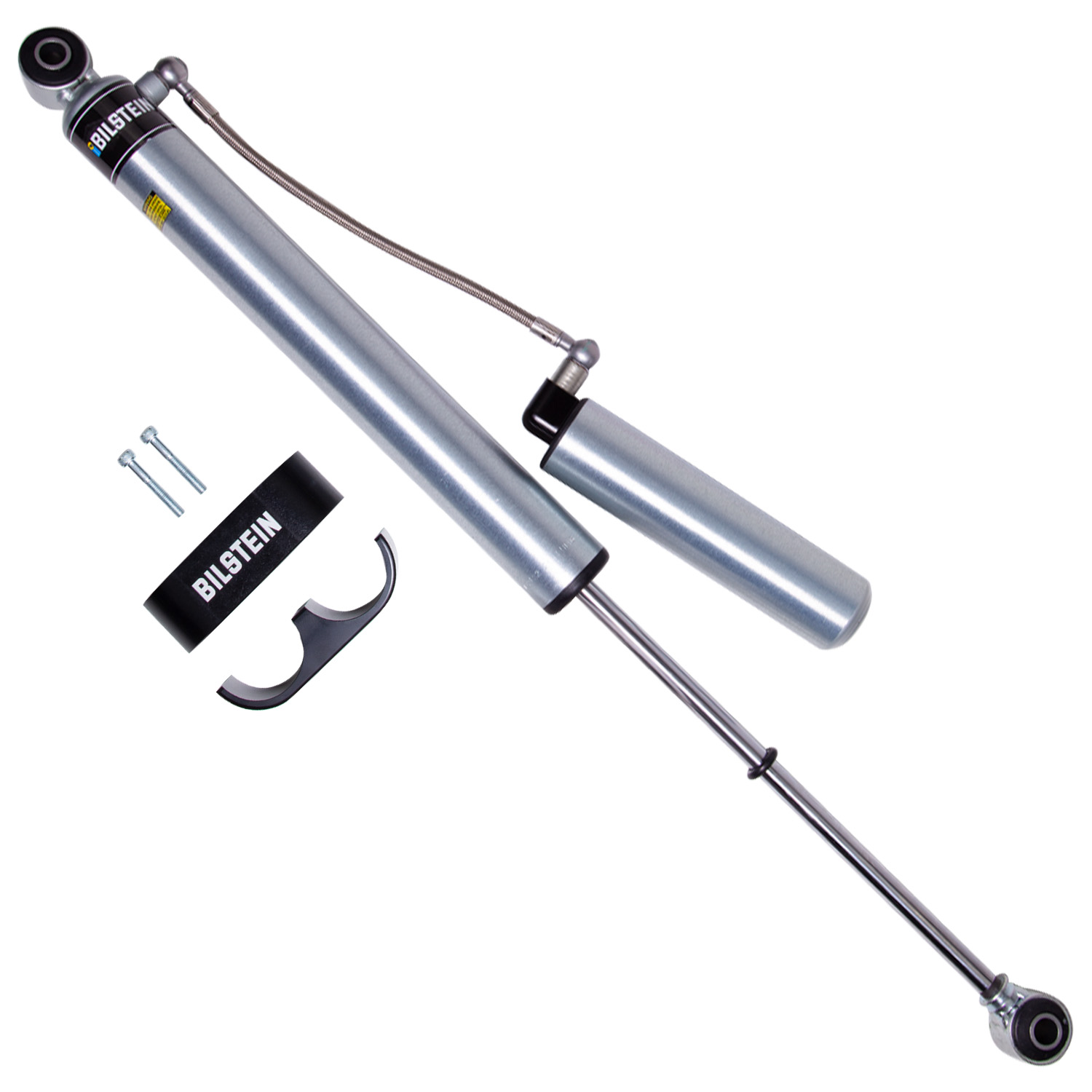

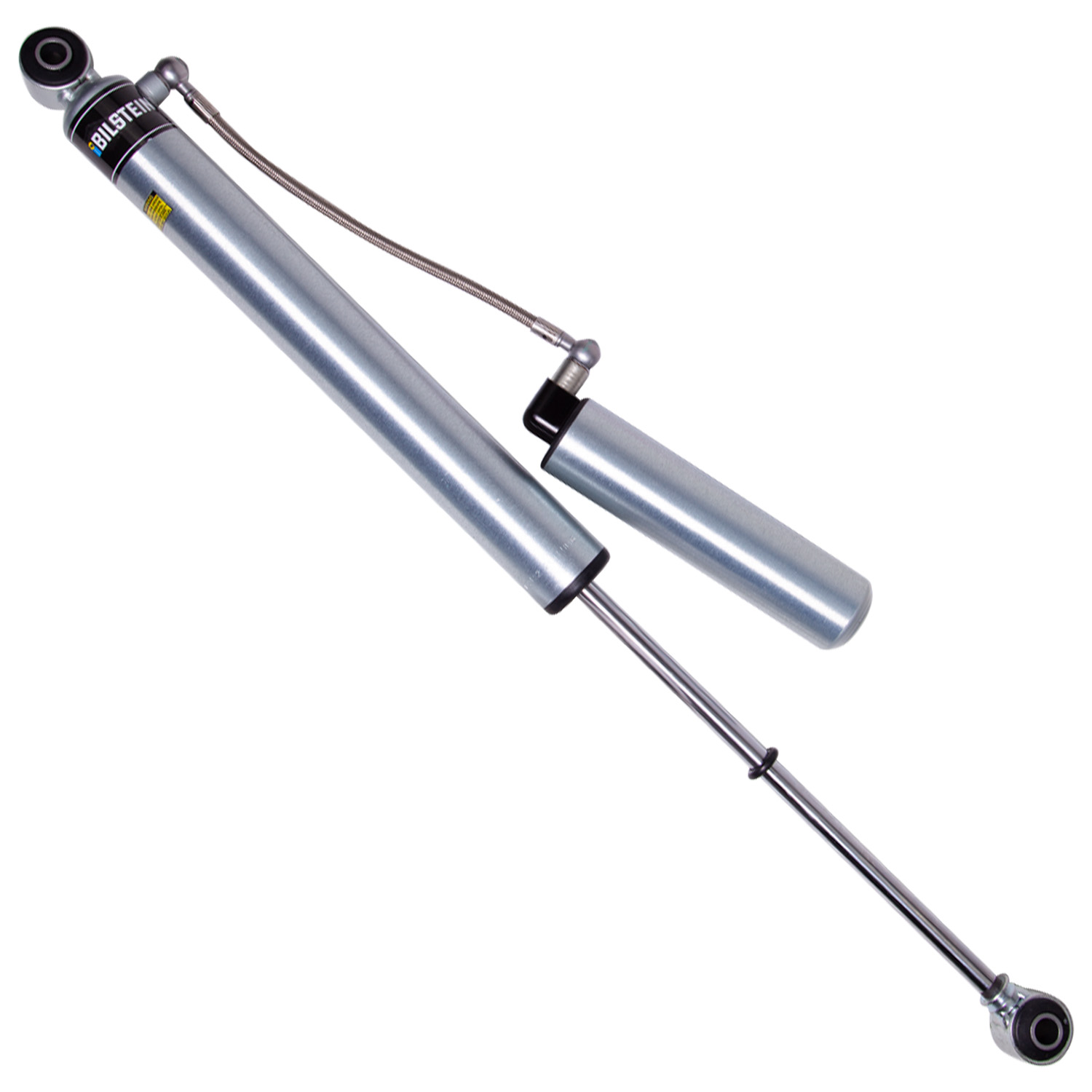

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber.

These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive Digressive valve settings which are tuned for each specific application.

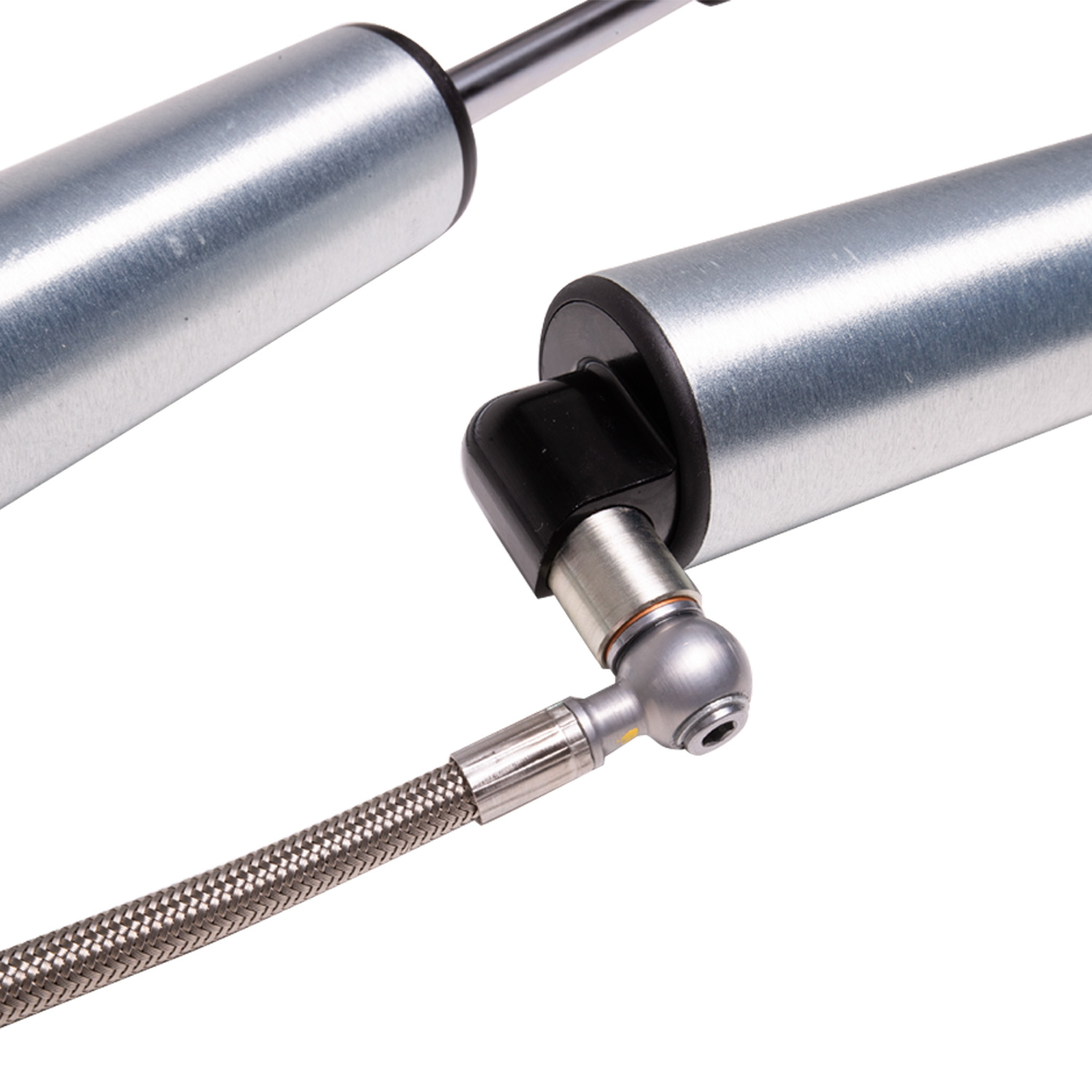

Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation.

B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments

Details:

• Series: B8 5160
• Internal Design:Monotube
• Lift Height: 4.0 Inch
• Lower Mount Type: Eye 14.4mm
• Upper Mount Type: Eye 14.4mm
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 18.14

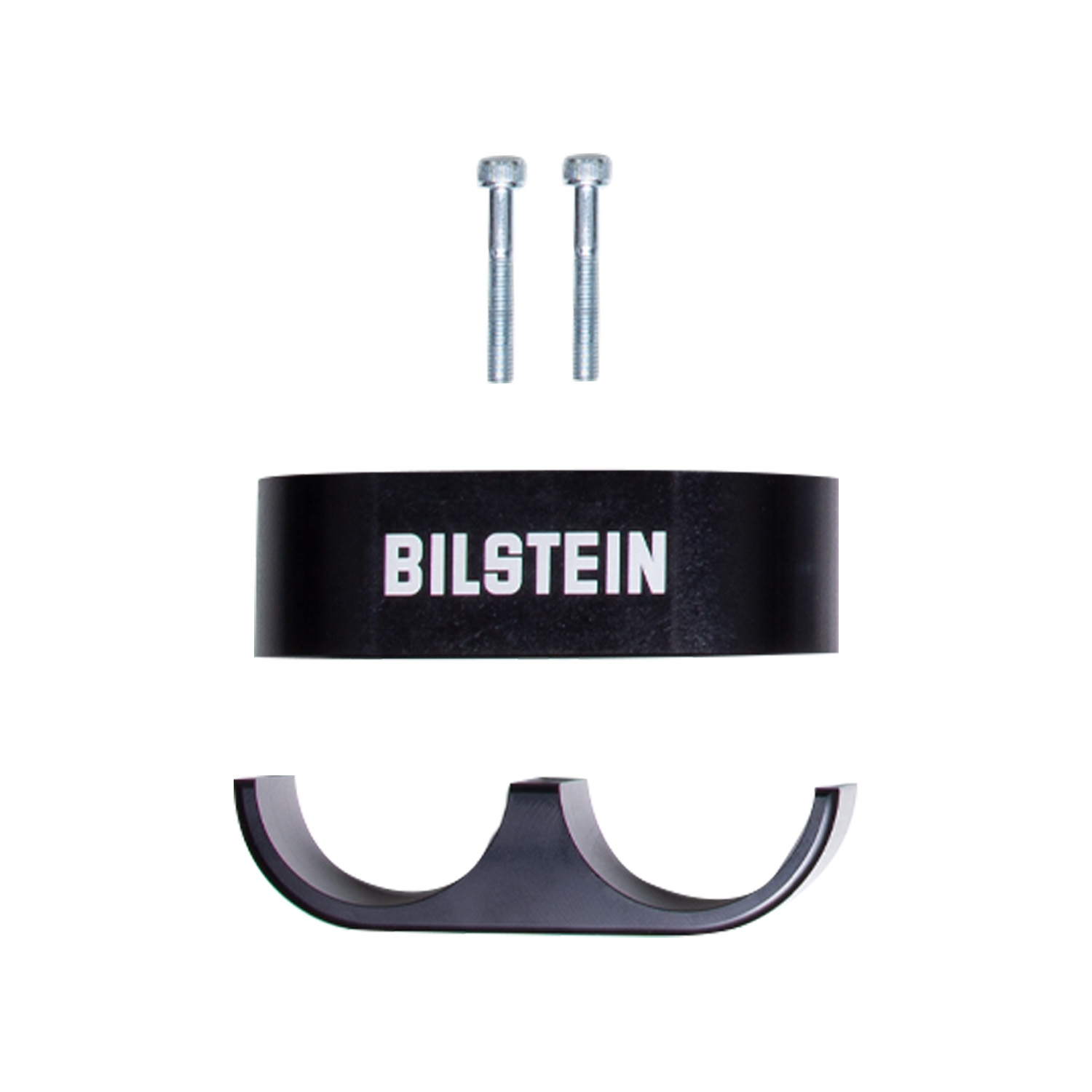

• Billet Reservoir Clamp Included: Yes
• Extended Length Inch: 31.28
• Boot Included:No
• Pistion Diameter: 46mm
• Postion: Rear
• Reservior: Yes
• Shaft Diameter: 14mm
• Stroke Travel Length In: 13.14
• Stroke Travel Length In: 333.8
• Notes: For Rear Lifted Height 4 Inch Without ZX3 Electronic Suspension Package Without Quadrasteer With Independent Front Suspension
• Applications: Silverado 1500 HD 2003-2001, Silverado 1500 HD 2006-2005, Silverado 2500 2004-1999, Silverado 2500 HD 2025-2001, Silverado 2500 HD Classic 2007, Silverado 3500 2006-2001, Silverado 3500 Classic 2007, Silverado 3500 HD 2025-2007, GMC Sierra 1500 HD 2003-2001, Sierra 1500 HD 2006-2005, Sierra 2500 2004-1999, Sierra 2500 HD 2025-2001, Sierra 2500 HD Classic 2007, Sierra 3500 2006-2001, Sierra 3500 HD 2025-2007
• Warranty: Limited Lifetime Warranty
